The ZLINK WT-PE200 is a specialized perforating wipes production line engineered for manufacturing high-quality wood pulp wet toilet paper and other flushable wipes. This advanced wet wipes production line integrates pre-online dosing technology for precise liquid uniformity, along with online automatic splicing for non-stop production. It supports pre-cut, roll, and fold capabilities, and features a versatile perforating system that can switch between middle and side perforations, making it ideal for both wet toilet paper and mop wipes production.
【Highlight】

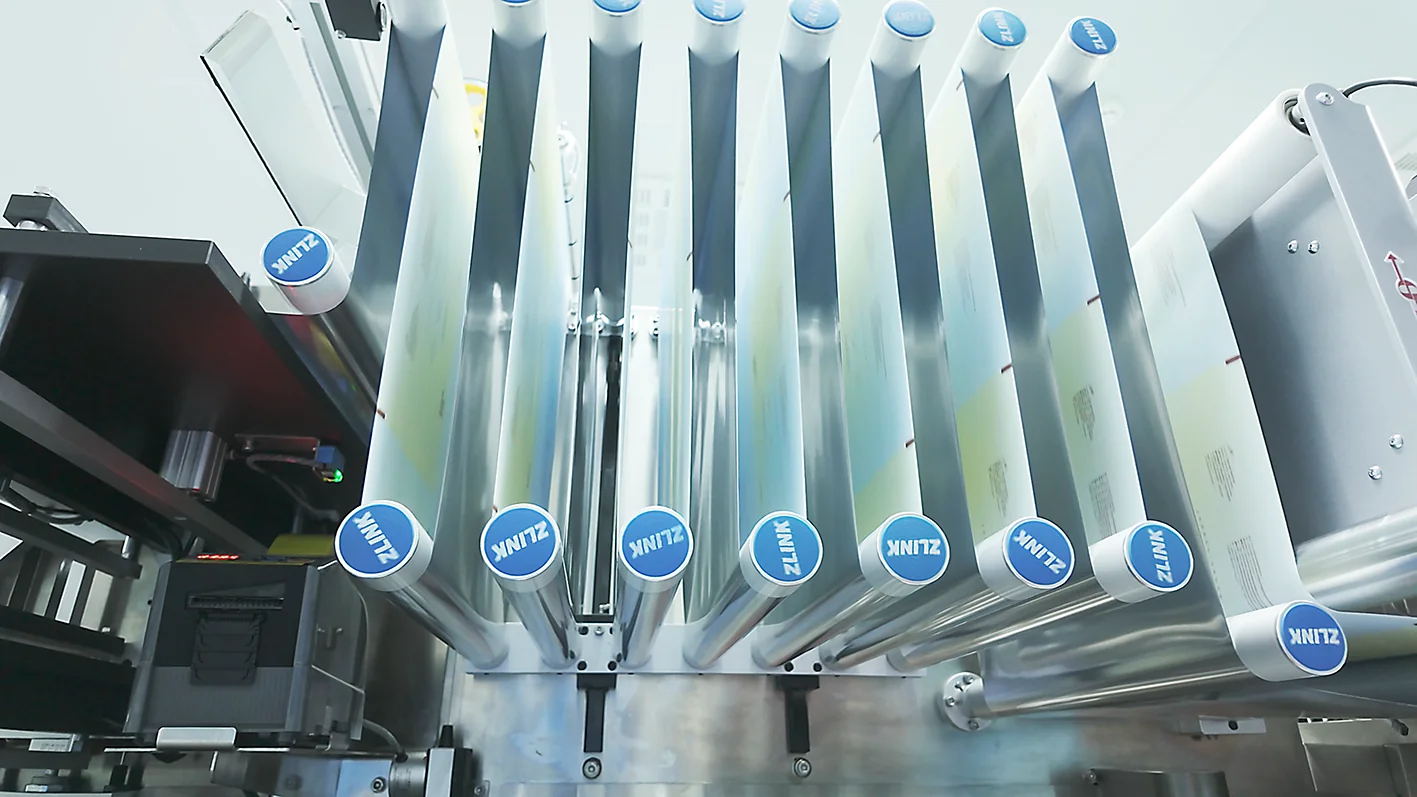

Perforating Versatility: Supports variable perforating positions (middle or sides) for different product formats
Wood Pulp & Fiber Compatibility: Optimized for wood pulp wet toilet paper, short-fiber wood pulp, and viscose/adhesive blends
Precision Dosing: Pre-online dosing technology ensures consistent liquid weight and uniformity across every package
Non-Stop Production: Online automatic splicing maintains full speed during roll changes, maximizing efficiency
Servo-Controlled Tension: Real-time monitoring and dynamic tension adjustment ensures stable, reliable operation
【Technical Data】
Point break equipment technical data | ||
1 | Disposition | Content |
2 | Control system | ZLINK custom system |
3 | Applied nonwoven material | wood pulp wet toilet paper, short fiber wood pulp paper, adhesive mixed materials |

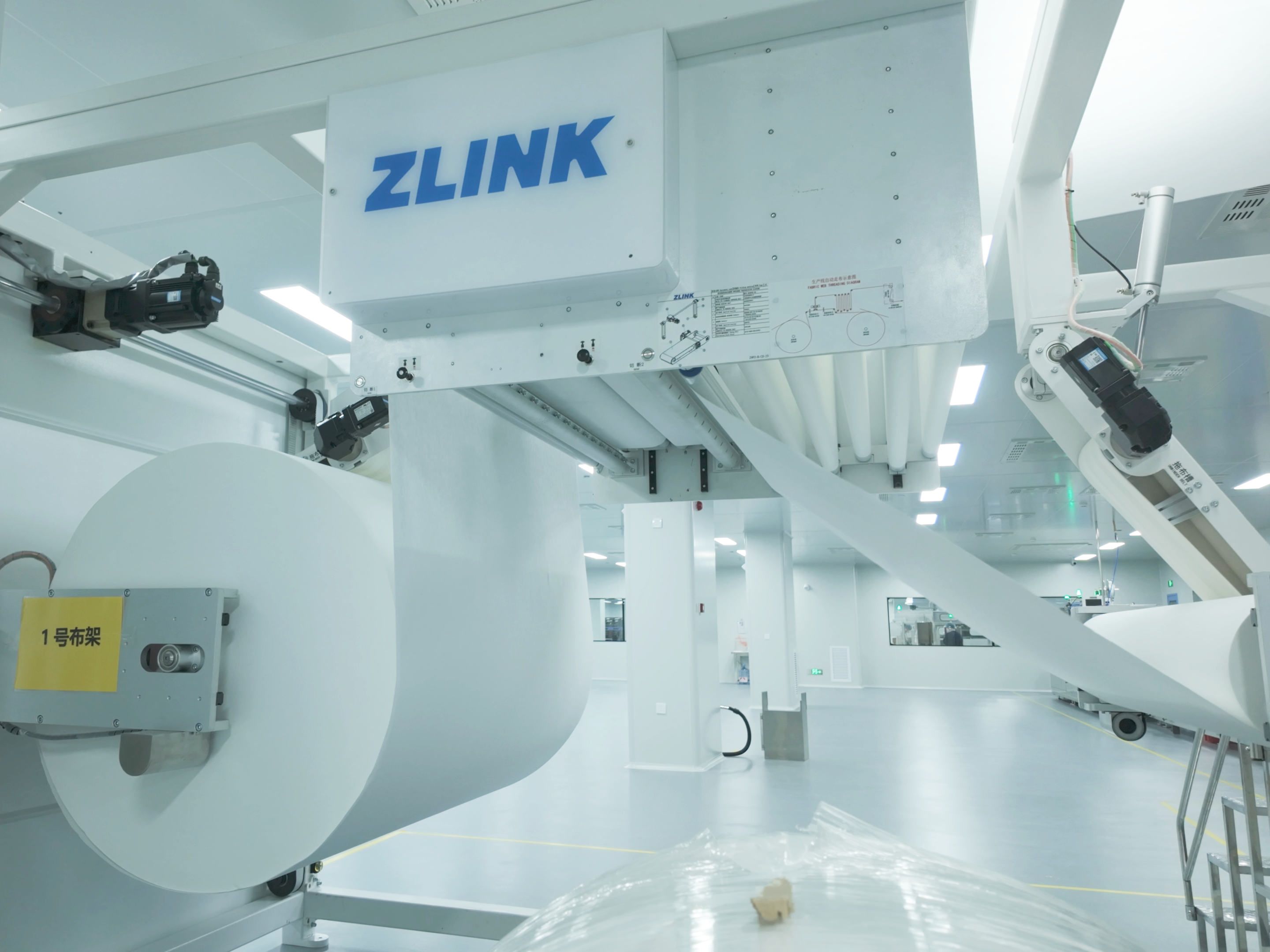

4 | Nonwoven weight | Suitable weight: 45-80gsm |
5 | Nonwoven width | W1400mm-1600mm |
6 | Nonwoven diameter | Maximum diameter: 1200mm |
7 | Width dimensions after folding | W100mm (fixed expansion size: 200mm, shrinkage of different materials after dosing) |
8 | Cutting dimensions | L100-200mm |
9 | Pieces/Package | 20-150 pieces (height after stacking 30<H<120mm) |
10 | Design speed: 150 m/min (the speed in different grammage) | 45-80gsm wood pulp wet toilet paper material, stable speed: 100-140 m/min |
45-80gsm nonwoven, stable speed: 100-140 m/min | ||
11 | Twisting speed | Design speed: maximum 18 pieces/min, production speed: maximum 16 pieces |
12 | Logsaw speed | 160-230 cut/min |
13 | Dosing ratio | 1.5-3.5 times (dosing s 2.6T/ hour), multiple magnetic pumps separate servo control flow |
14 | Air blower | SC-1508C-2 Quiet intelligent fan (22kw), low noise 75DB |
15 | Storage | Dosing tank (SUS316L) can be customized |
16 | Unwinder | The visual detection locates the position of the nonwoven, and the automatic displacement of the paper shaft is inserted; Independent motor control nonwoven automatically lifting displacement; Automatic base paper unwinding adopts independent motor control system to ensure stable paper feeding; Without stop online splicing, automatic correction system |
What is the difference between this and a standard wet wipes line?
The WT-PE200 is specifically designed for perforating wipes, with the ability to produce pre-cut sheets that can be rolled or folded. It is optimized for wood pulp and flushable materials used in wet toilet paper.
What materials can this perforating wipes line handle?
It is designed for wood pulp wet toilet paper, short-fiber wood pulp paper, and adhesive mixed materials, with a weight range of 45-80gsm.
What is the production speed of this wood pulp wipes machine?
While the line is high-speed, the exact output depends on the material and cutting size. Contact us for specifications tailored to your product.
Can this line produce mop wipes as well?
Yes, besides wet toilet paper, it is compatible with various materials like viscose and short-fiber blends for mop wipes and other cleaning products.
