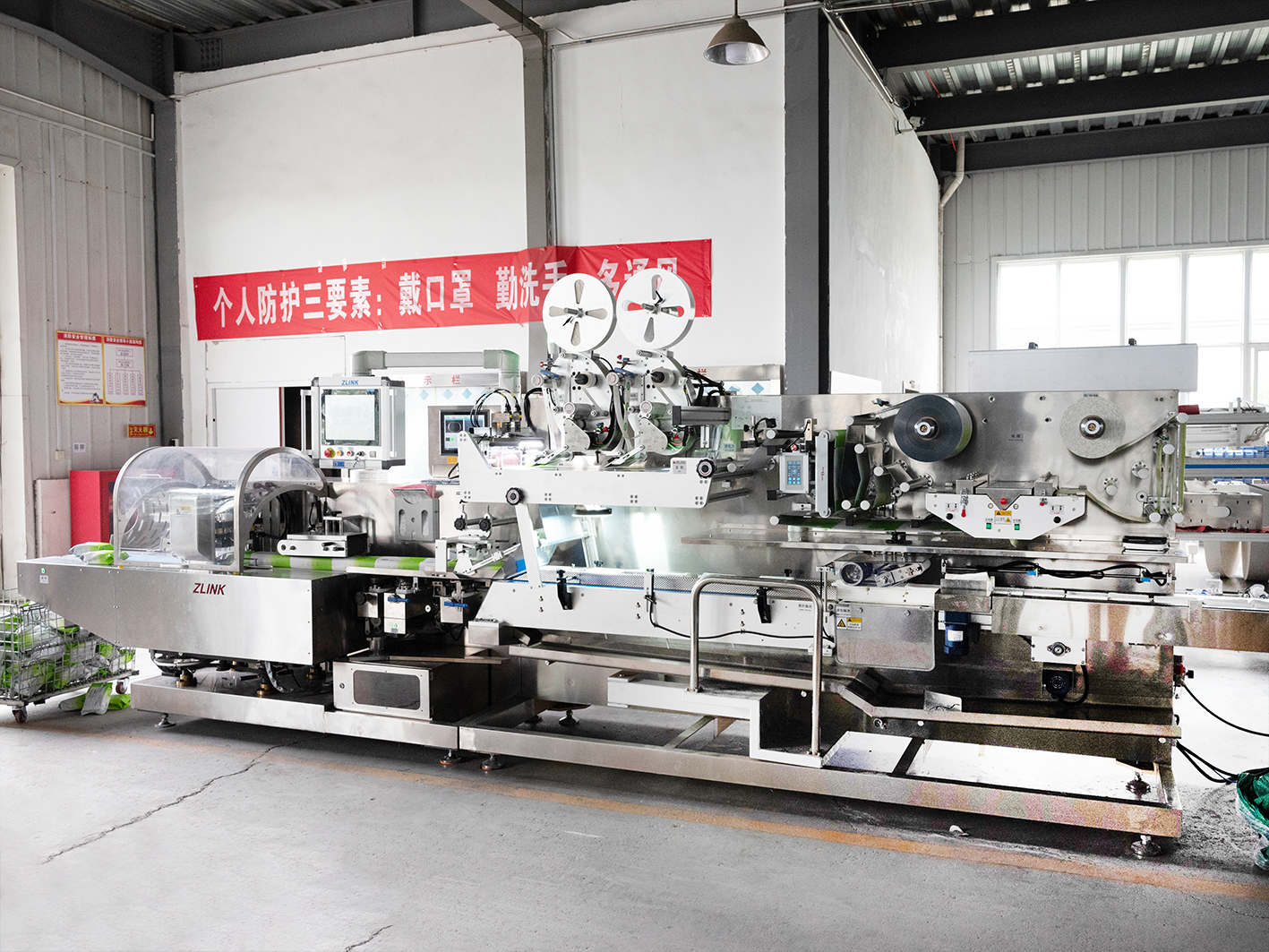

ZLINK WT-CF2/2 is a High Speed Cross Fold Wet Wipes Production Line designed for manufacturers who demand efficiency, precision, and operational flexibility. This wet wipes making machine integrates two independent cross-fold modules that can operate separately or simultaneously, allowing you to adjust production capacity without stopping the line. Whether you produce baby wipes, personal care wipes, or household cleaning wipes, this wet wipes manufacturing machine delivers consistent quality at speeds up to 750 sheets/min per lane. With full-servo control, automatic splicing, and CIP hygiene support, the WT-CF2/2 is built for continuous, high-volume production with minimal downtime.
Dual-Lane Flexibility – Two independent cross-fold modules can run separately or together, giving you complete control over production scaling
Full-Servo Motion Control – Multi-axis servo system ensures high precision and synchronization across the entire wet wipes making process, reducing waste and improving product consistency
Hygienic Design for Sensitive Applications – CIP cleaning and pasteurization support make this wet wipes manufacturing machine ideal for baby wipes and personal care production
Non-Stop Production – Automatic roll splicing and continuous operation minimize downtime, maximizing your output per shift
High-Speed Performance – Up to 750 sheets/min per lane, with optional configurations to match your target capacity
【Machine Features and Highlights】
Electric system | Electrical safety circuit design and comply with CE safety standard |
Control system | Multi-axis servo motion controller, full servo motor control |
HMI | LCD Color touch screen display interface |
Unwinding device | Independent automatic tension control system |
Auto splicing | Nonwovens, packing film and labeler non-stop auto splicing with spliced joint automatic rejection system |
Automatic edge position controller | Automatic edge position controller for four single lanes, to ensure high speed stable running and folding accuracy |
Wipes cutting module | 2 units of double lanes cutting and cross folding, can choose operate 1 unit or 2 units |
Cleaning and disinfection | Hygiene grade design, wipes conveyor belt is designed for easy disassembly and it is easy to clean and disinfect |
Wetting flow control | Electronic flowmeter control wetting flow, reduce recycle liquid, wetting range 2.5-4.5 times |
Pipeline disinfection | Pipeline and pump use hygiene grade low point drain out design and 3D design standard, no residue and free of dead comer, apply to pasteurization or ClP (Clean In Place) |
Spectral decomposition detection | Nonwoven, label, packing film, wetting weight, packaging on-line monitoring |
Quality control (optional devices) | Nonwoven stain detection, Metal detection, Checkweigher, Date code & Die cutting & Labeling visual inspection |
SCADA application program (optional devices) | (Supervisory Control and Data Acquisition) equipment operating and detection data output port |
【Technical Data】
Applied nonwoven material | Spunlace or flushable material and degradable material |
Nonwoven specification | Each lane roll W140-200mm, Ф1200mm, core Ф76.2mm(3″) |
Nonwoven quantity | Load 8 rolls of nonwoven, non-stop auto splicing, 4 rolls running and another 4 rolls standby |
Applied packing film | PET/PE, BOPP/PE, PET/AL/PE laminated film and other heat-seal materials |
Packing film specification | Maximum W420mm, Ф360mm, core Ф76.2mm(3″) |
Packing film quantity | 2 rolls of packing film, non-stop auto splicing |
Applied label | Transparent label or non-transparent label |
Label specification | Maximum W100mm, Ф400mm, core Ф76.2mm(3″ ), 2 rolls of label, non-stop switch |
Fold type | Z fold (otherwise indicated) |
Folded size | L70-100mm, W50-100mm |
Unfolded size | L140-200mm, W140-200mm |
Package size | L130-250mm, W65-105mm, H10-70mm |
Production speed | 200 packages/min or 2400 wipes/min, whichever comes first |
External dimension | L16000mm, W4500mm, H2350mm |
Rated power | AC380V(Customizable), 50/60Hz, three-phase five-wire, 32KW |
Compressed air | 0.6-0.8Mpa, 165L/min |
Net weight | About 8500KGS |
1.What is the price of a high speed wet wipes production line?
The cost of a wet wipes production line depends on configuration, speed, and additional modules (e.g., pasteurization, packaging integration). Contact us with your capacity requirements, and we will provide a tailored quote.
2. Can this wet wipes machine be customized for different wipe sizes or materials?
Yes. The WT-CF2/2 supports unfolded sizes from L140-200mm × W140-200mm and can be adapted for various non-woven materials. Customized folded sizes, packaging integration, and additional hygiene modules are also available upon request.
3. What is the production speed of this wet wipes machine?
This wet wipes machine runs at up to 750 sheets/min per lane, with dual-lane operation available for higher output.
4. Can this production line produce baby wipes?
Yes. The WT-CF2/2 wet wipes manufacturing machine is designed with CIP hygiene and pasteurization support, making it fully suitable for baby wipes and other sensitive personal care products.
5. What after-sales support does ZLINK provide?
ZLINK offers installation guidance, on-site training, spare parts supply, and remote technical support to ensure your wet wipes production line runs smoothly over its entire lifecycle.
