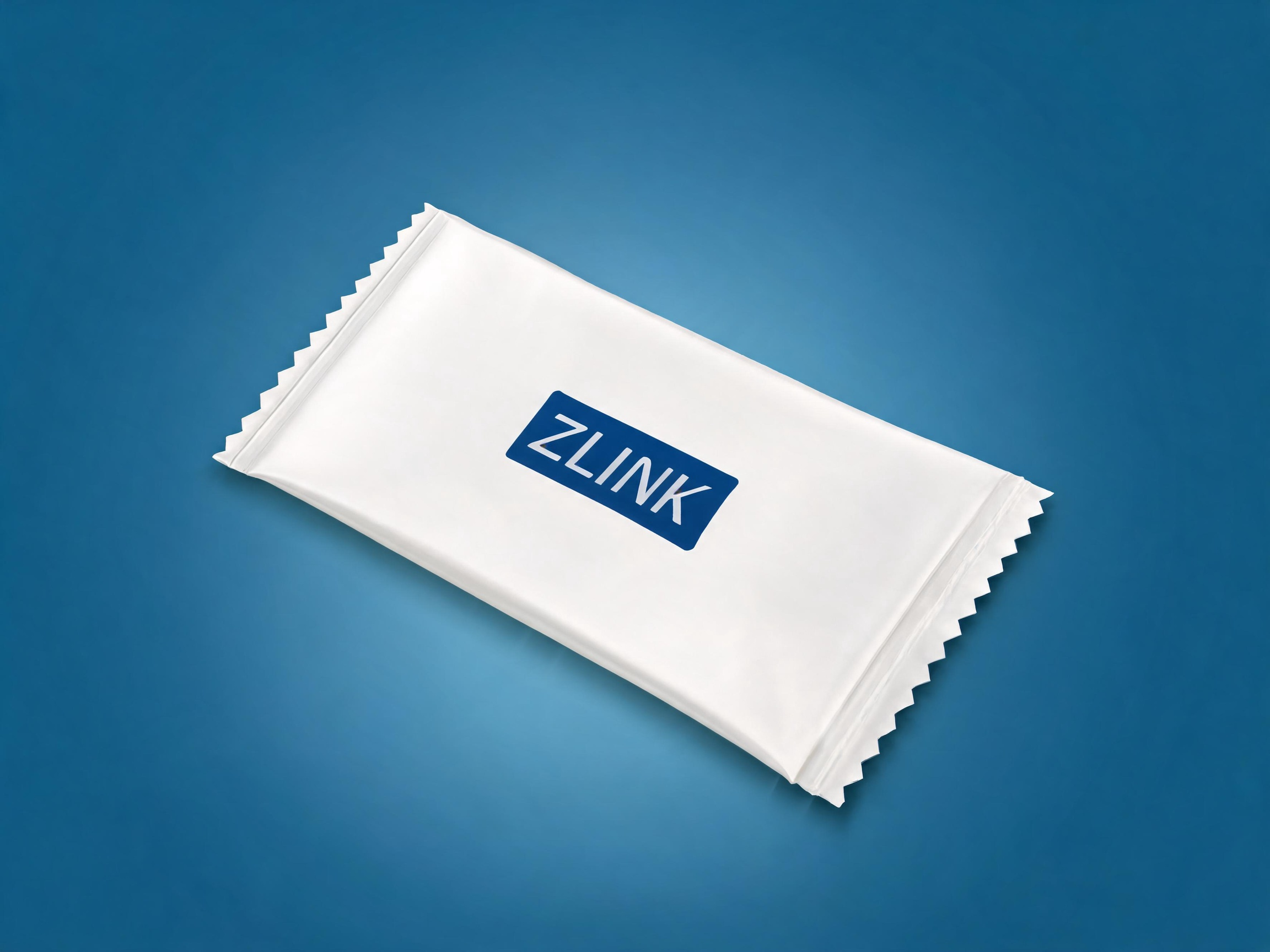

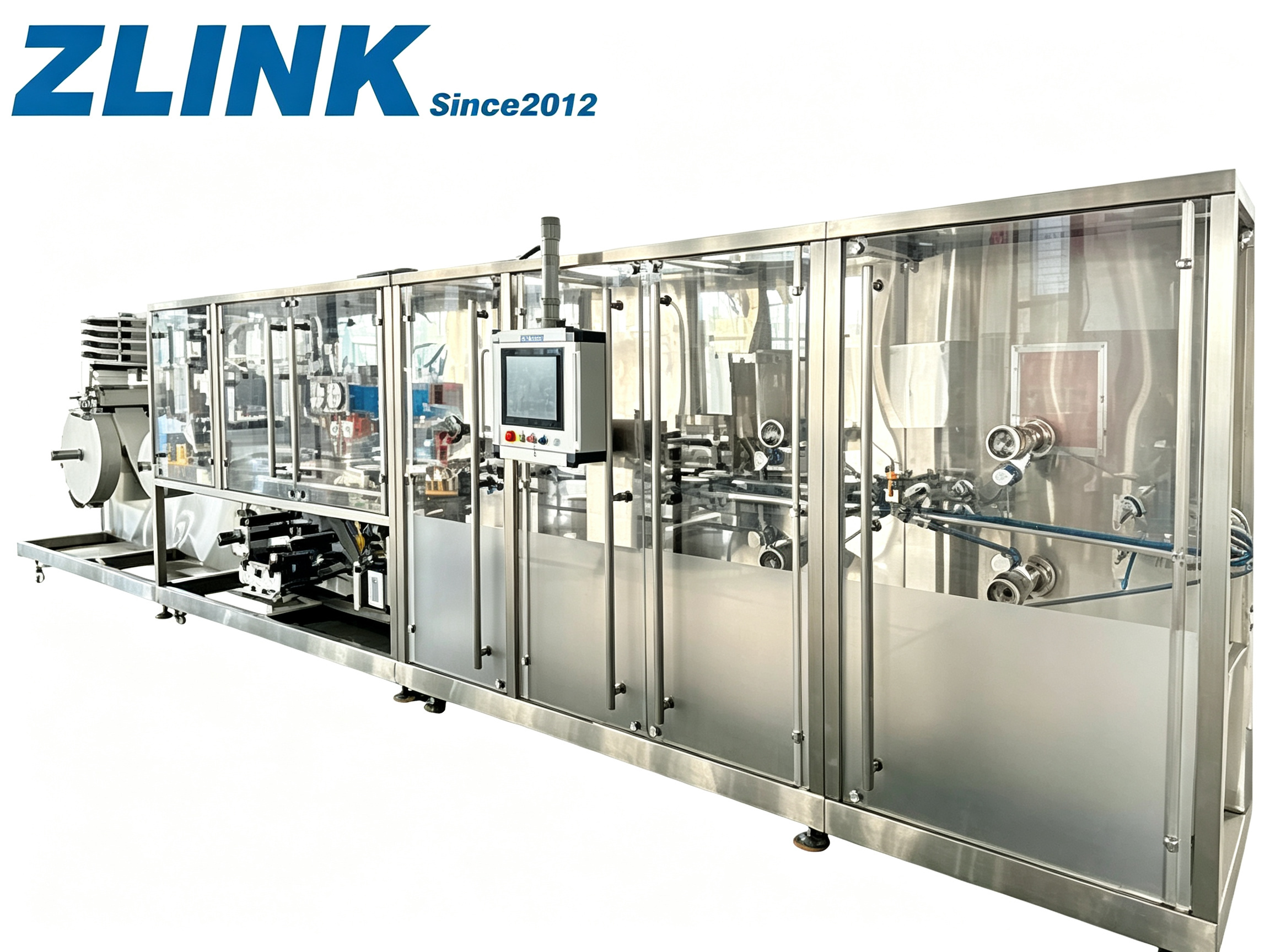

The ZLINK WT-CF1 is a fully automatic single piece wet wipes production line designed for high-speed, precision packaging of individually wrapped wet wipes. This wet wipes production line achieves speeds up to 400 packages per minute, significantly boosting your production efficiency through its highly integrated and intelligent design. Whether you produce baby wipes, personal care wipes, or household cleaning wipes, this automatic wet wipes machine delivers consistent quality, hygiene, and reliability.
【Highlights】
High-Speed Output: Reaches up to 400 packages/min, maximizing daily production capacity.
Non-Stop Auto Splicing: Supports 2 rolls of nonwoven and 2 rolls of packing film with automatic splicing to minimize downtime.
Versatile Folding Options: Supports Z, W, and N fold types with width adjustable from 35-100mm.
Precision Servo Control: Independent servo drive for cutting length (120-235mm) with one-key adjustment via LCD screen.
Hygienic Design: Features a sanitary, easy-to-disassemble cleaning system with PID self-cycling and SUS316L material.
【Technical Data】
Applied nonwoven material | Spunlace or flushable material and degradable material, etc |
Nonwoven specification | Each lane roll W150-330mm, Φ 1200mm, core Φ76.2mm(3＂) |
Nonwoven quantity | Load 2 rolls of nonwoven, non-stop auto splicing, 1 roll running and another standby |
Applied packing film | PET/PE, BOPP/PE, PET/AL/PE laminated film and other heat-seal materials |
Packing film specification | Max W420mm, Φ 360mm, core Φ76.2mm (3＂) |
Packing film quantity | 2 rolls of packing film, non-stop auto splicing |
Fold type | Z, W, N(type) 35-100mm width adjustable |
Wipes size | Servo independent drive, cutting length 120-235mm, one-key adjustment, setting by LCD screen |
Production speed | 400 packages/min (depending on material, whichever comes first) |
Dosing control system | 3D standard no retention low emission, sanitary easy disassembly cleaning, PID self-cycling cleaning, SUS316L material |
Packing film constant tension automatic control | 2 rolls film of servo unwinding control, maintain tension balance |
Back seal clip detection | Online detection to identify the bottom of the wet wipes sealing sandwich with nonwoven to hide the risk of leakage |
Automatic sorting machine | Servo control, touch screen control adjustable automatic sorting |
Single piece multi-packing machine | Servo control non-stop refueling sanitary 5-20 pieces touch screen control multi-pack prefabricated cartridge 40 packages/min |
