The ZLINK WT-IF80/100HS is an ultra-wide high speed baby wipes production line engineered for manufacturers who demand maximum output and efficiency. This flagship wet wipes production line handles exceptionally wide parent rolls and supports synchronized operation of 2 to 4 packaging machines, delivering unmatched efficiency from raw material to finished product. With a maximum capacity of up to 60,000 wipes per minute, this baby wipes manufacturing machine is the ultimate turnkey solution for building world-class digital factories.

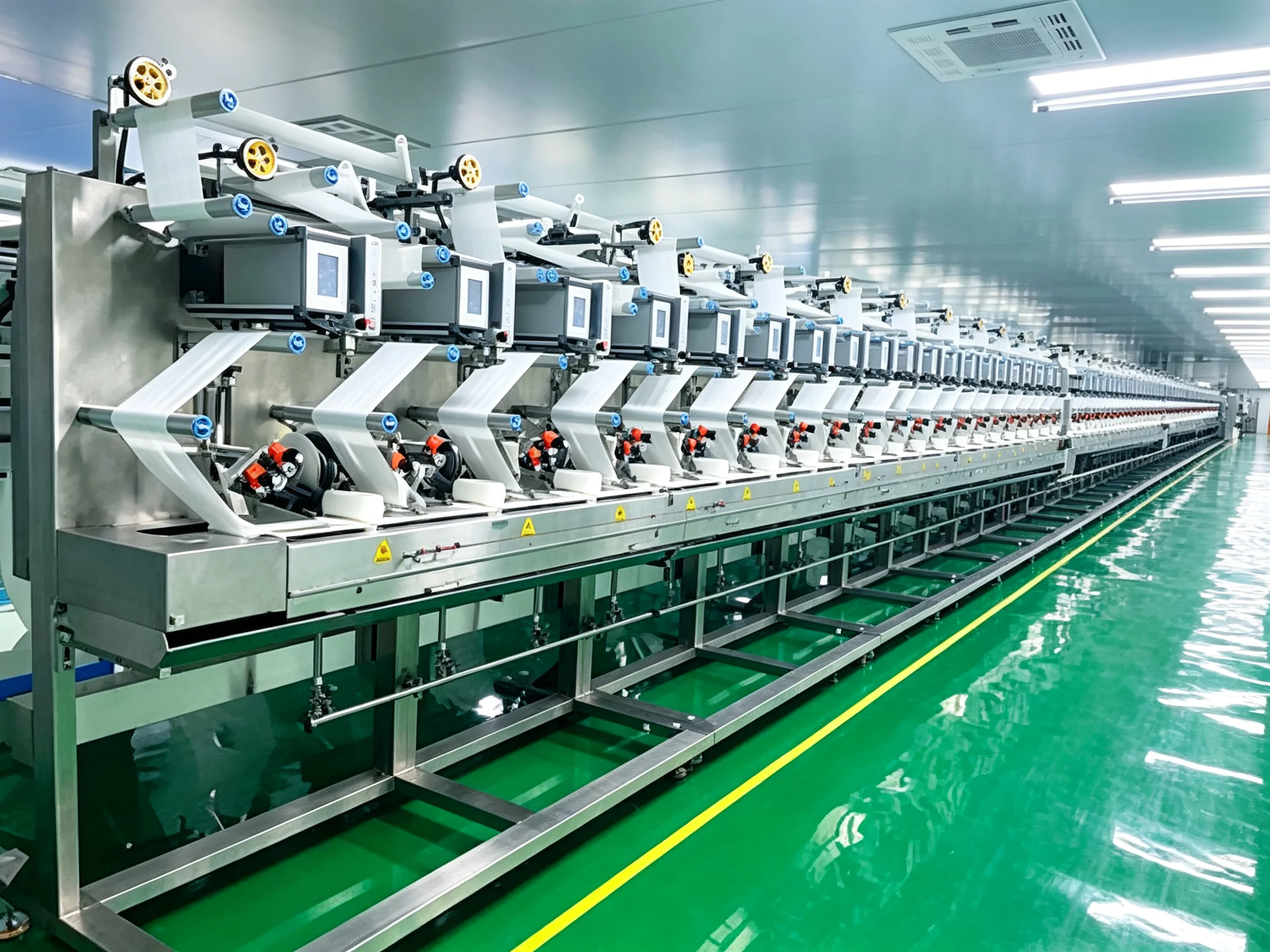

Ultra-Wide Web Processing: Handles exceptionally wide parent rolls for maximum material utilization
Synchronized Multi-Packaging Support: Operates 2-4 packaging machines in line for unmatched throughput
Flagship Production Capacity: Delivers up to 60,000 wipes per minute for high-volume manufacturing
Advanced Servo Control: High-rigidity design with servo dynamic adjustment ensures precision at ultra-high speeds
MES-Ready Digital Integration: Robust data management capabilities for building world-class digital factories
【Machine Features and Highlights】
Machine model | WT-IF80HS | WT-IF100HS |
Electric system | Electrical safety circuit design and comply with CE safety standard | |
Control system | Multi-axis servo motion controller, full servo control | |
HMI | LCD Color touch screen display interface | |
Unwinding device | Independent automatic tension control system | |
Auto splicing | Nonwovens, packing film and labeler non-stop auto splicing with spliced joint automatic rejection system | |
Wipes cutting module | Logsaw with swing arm | |
Cleaning and disinfection | Hygiene grade design, wipes conveyor belt is designed for easy disassembly, and it is easy to clean and disinfect | |

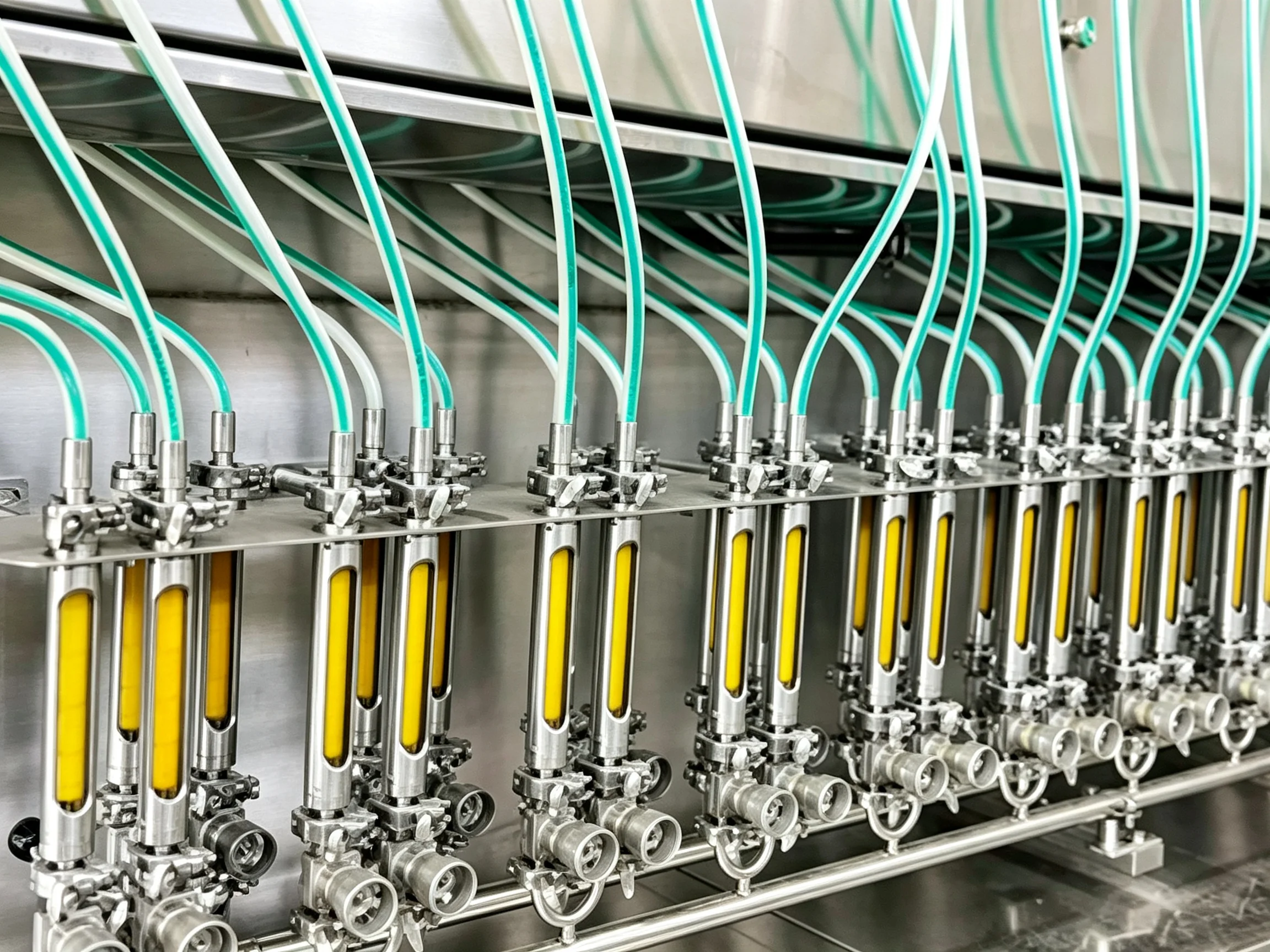

Wetting flow control | Electronic flowmeter controls wetting flow, reduces recycled liquid, wetting range 2.5-4.5 times | |
Pipeline disinfection | Pipeline and pump use hygiene grade low point drain out design and 3D design standard, no residue and free of dead corner, apply to pasteurization or ClP (Clean In Place) | |
Spectral decomposition detection | Nonwoven, label, packing film, wetting weight, packaging on-line monitoring | |
Automatic web guide (Optional) | Automatic web guide to ensure high speed stable running and folding accuracy | |
Quality Control (Optional) | Nonwoven stain detection, Metal detection, Checkweigher, Date code & Die cutting & Labeling visual Inspection | |
SCADA application program (Optional) | (Supervisory Control and Data Acquisition) equipment operating and detection data output port | |
【Technical Data】
Machine model | WT-IF80HS | WT-IF100HS |
Applied nonwoven material | Spunlace or flushable material and degradable material | |
Nonwoven specification | Each roll of nonwoven W160-200mm,Ф1200mm, core Ф76.2mm (3”) | |
Lanes distribute and folding | 160 rolls nonwoven, 80 rolls running, | 200 rolls of nonwoven, 100 rolls running, |
Applied packing film | PET/PE, BOPP/PE, PET/AL/PE laminated film and other heat-seal materials | |
Packing film specification | Maximum W460mm, Ф360mm, core Ф76.2mm(3″) | |
Packing film quantity | Each set of flow packing machine 2 rolls of packing film, non-stop auto splicing | |
Applied label | Transparent label or non-transparent label | |

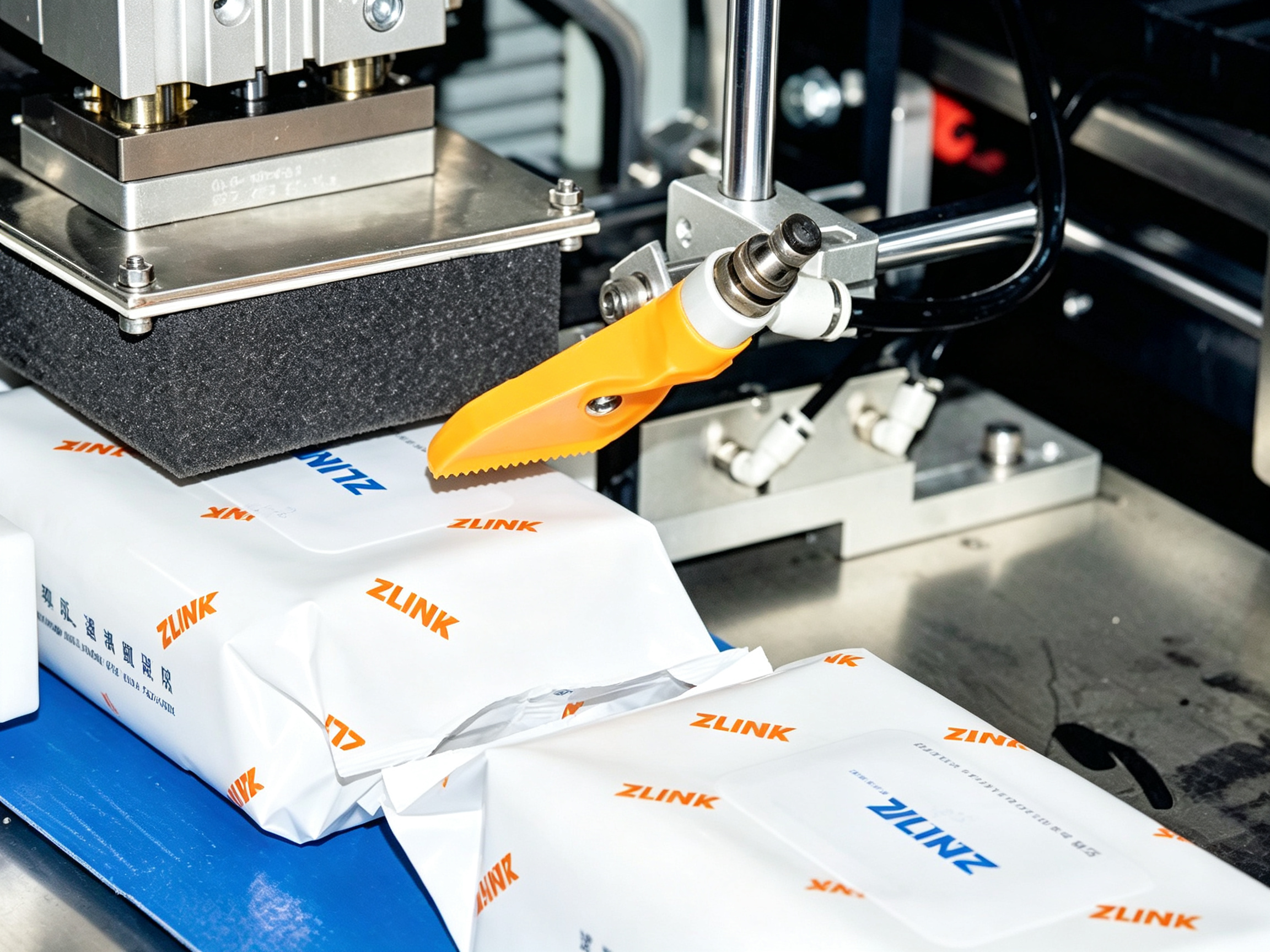

Label specification | Maximum W100mm, Ф400mm, core Ф76.2mm(3″ ), 2 rolls of label, non-stop switch | |
Fold type | Not pop-up extraction or Pop-up extraction | |
Folded size | L140-220mm, W80-105mm (otherwise indicated) | |
Unfolded size | L140-220mm, W160-210mm (otherwise indicated) | |
Package size | L150-300mm, W85-125mm, H30-100mm (otherwise indicated) | |
Connect with packing machine Qty | 2 sets of flow packing machine | |
Production speed | 240-360 packs/min or MAX 450 cpm or 28800 wipes/min, whichever comes first | 240-360 packs/min or MAX 450 cpm or 36000 wipes/min, whichever comes first |
External dimension | L72000mm, W11000mm, H2400mm | L84000mm, W11000mm, H2400mm |
Rated power | AC380V (Customizable), 50/60Hz, three-phase five-wire, 86KW | AC380V (Customizable), 50/60Hz, three-phase five-wire, 92KW |
Compressed air | 0.6-0.8Mpa, 420L/min | 0.6-0.8Mpa, 440L/min |
Net weight | About 35000KGS | About 40000KGS |
1. What is the production capacity of this high speed baby wipes production line?
The WT-IF80/100HS delivers up to 60,000 wipes per minute, making it one of the highest-capacity baby wipes production lines available.
2. How many packaging machines can this wet wipes production line support?
This ultra-wide wet wipes production line supports synchronized operation of 2 to 4 packaging machines, allowing for flexible and efficient downstream packaging.
3. What materials can this baby wipes manufacturing machine process?
It processes spunlace, flushable, and biodegradable nonwoven materials, as well as various heat-seal packing films including PET/PE, BOPP/PE, and PET/AL/PE laminated films.
4. Does this production line support MES integration?
Yes, the WT-IF80/100HS features robust data management capabilities with seamless MES integration for digital factory management.
5. What is the price of this ultra-wide baby wipes production line?
Pricing depends on configuration, packaging line setup, and additional features. Contact ZLINK with your production requirements for a customized quote.
