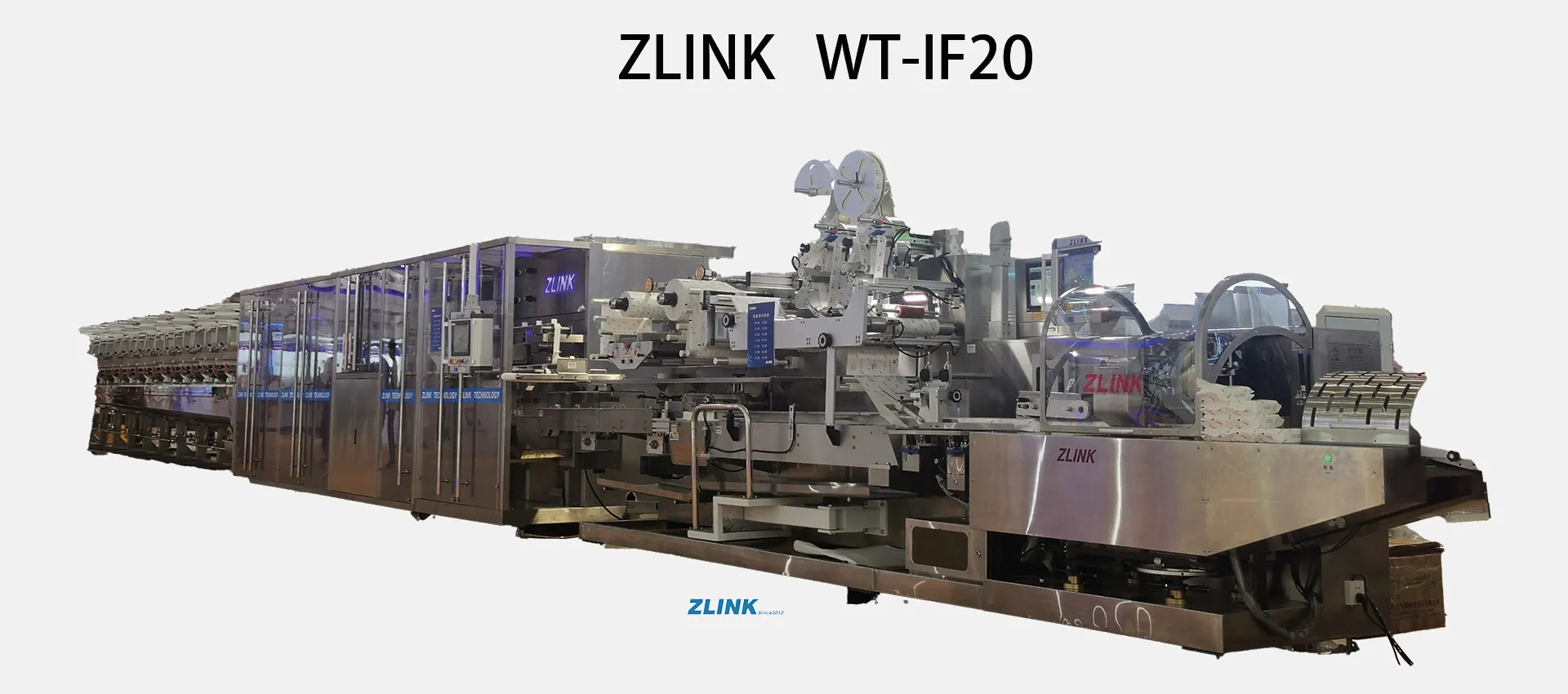

The ZLINK WT-IF12/20 is a standard baby wipes production line engineered for manufacturers who need reliable, cost-effective production without compromising quality. This baby wipes manufacturing machine delivers a steady output of up to 100 packages per minute, making it an ideal choice for medium-scale operations. Whether you produce baby wipes, makeup remover wipes, or household cleaning wipes, this wet wipes production line offers the versatility and stability you need for consistent daily production.
Reliable Standard Output: Steady production at 100 packs/min, perfect for consistent medium-scale manufacturing
CE-Compliant Safety: Electrical system meets CE safety standards for secure operation
Versatile Material Compatibility: Supports spunlace, biodegradable, and various nonwoven fabrics
Cost-Effective Solution: Balanced performance and price, ideal for growing businesses
Easy Maintenance: Tool-free disassembly design for quick cleaning and sanitation
【Machine Features and Highlights】
Machine model | WT-IF12 | WT-IF20 |
Electric system | Electrical safety circuit design and comply with CE safety standard | |
Control system | Multi-axis servo motion controller, full servo control | |
HMI | LCD Color touch screen display interface | |
Unwinding device | Independent automatic tension control system | |
Auto splicing | Nonwovens, packing film and labeler non-stop auto splicing with spliced joint automatic rejection system | |
Wipes cutting module | Rotary cutting roller | |
Cleaning and disinfection | Hygiene grade design, wipes conveyor belt is designed for easy disassembly and it is easy to clean and disinfect | |
Wetting flow control | Electronic flowmeter control wetting flow, reduce recycle liquid, wetting range 2.5-4.5 times | |
Pipeline disinfection | Pipeline and pump use hygiene grade low point drain out design and 3D design standard, no residue and free of dead comer, apply to pasteurization or ClP (Clean In Place) | |
Spectral decomposition detection | Nonwoven, label, packing film, wetting weight, packaging on-line monitoring | |
Automatic web guider (Optional) | Automatic web guider to ensure high speed stable running and folding accuracy | |
Quality Control (Optional) | Nonwoven stain detection, Metal detection, Checkweigher, Date code & Die cutting & Labeling visual Inspection | |
Quality Control (Optional) | (Supervisory Control And Data Acquisition) equipment operating and detection data output port | |
【Technical Data】
Machine model | WT-IF12 | WT-IF20 |
Applied nonwoven material | Spunlace or flushable material and degradable material | |
Nonwoven specification | Each roll of nonwoven W160-200mm,Ф1200mm, core Ф76.2mm (3”) | |
Lanes distribute and folding | 24 rolls of nonwoven, 12 rolls running, 12 rolls standby for splicing | 40 rolls of nonwoven, 20 rolls running, 20 rolls standby for splicing |
Applied packing film | PET/PE, BOPP/PE, PET/AL/PE laminated film and other heat-seal materials | |
Packing film specification | Maximum W460mm, Ф360mm, core Ф76.2mm(3″) | |
Packing film quantity | 2 rolls of packing film, non-stop auto splicing | |
Applied label | Transparent label or non-transparent label | |
Label specification | Maximum W100mm, Ф400mm, core Ф76.2mm(3″ ), 2 rolls of label, non-stop switch | |
Fold type | Not pop-up extraction or Pop-up extraction | |
Folded size | L130-260mm, W80-105mm (otherwise indicated) | |
Unfolded size | L130-260mm, W160-210mm (otherwise indicated) | |
Package size | L150-300mm, W85-125mm, H30-110mm (otherwise indicated) | |
Production speed | 80 ppm or 550 cpm or 6600 wipes/min, whichever comes first | 100 ppm or 550 cpm or 11000 wipes/min, whichever comes first |
External dimension | L17000mm, W4700mm, H2350mm | L22000mm, W4700mm, H2350mm |
Rated power | AC380V (Customizable), 50/60Hz, three-phase five-wire, 30KW | AC380V (Customizable), 50/60Hz, three-phase five-wire, 32KW |
Compressed air | 0.6-0.8Mpa, 155L/min | 0.6-0.8Mpa, 165L/min |
Net weight | About 18000KGS | About 20000KGS |
What is the production speed of this standard baby wipes production line?
The WT-IF12/20 standard model delivers up to 100 packages/min, or 500 cuts/min, providing reliable output for medium-scale production.
What materials can this baby wipes making machine handle?
It supports spunlace nonwoven, hot-rolled nonwoven, biodegradable nonwoven, wet strength paper, and more.
Is this wet wipes production line suitable for makeup remover wipes?
Yes, it is versatile enough to produce baby wipes, makeup remover wipes, specialty wipes, and cleaning wipes.
