Линия производства влажных салфеток с горизонтальным складыванием – WT-MD200

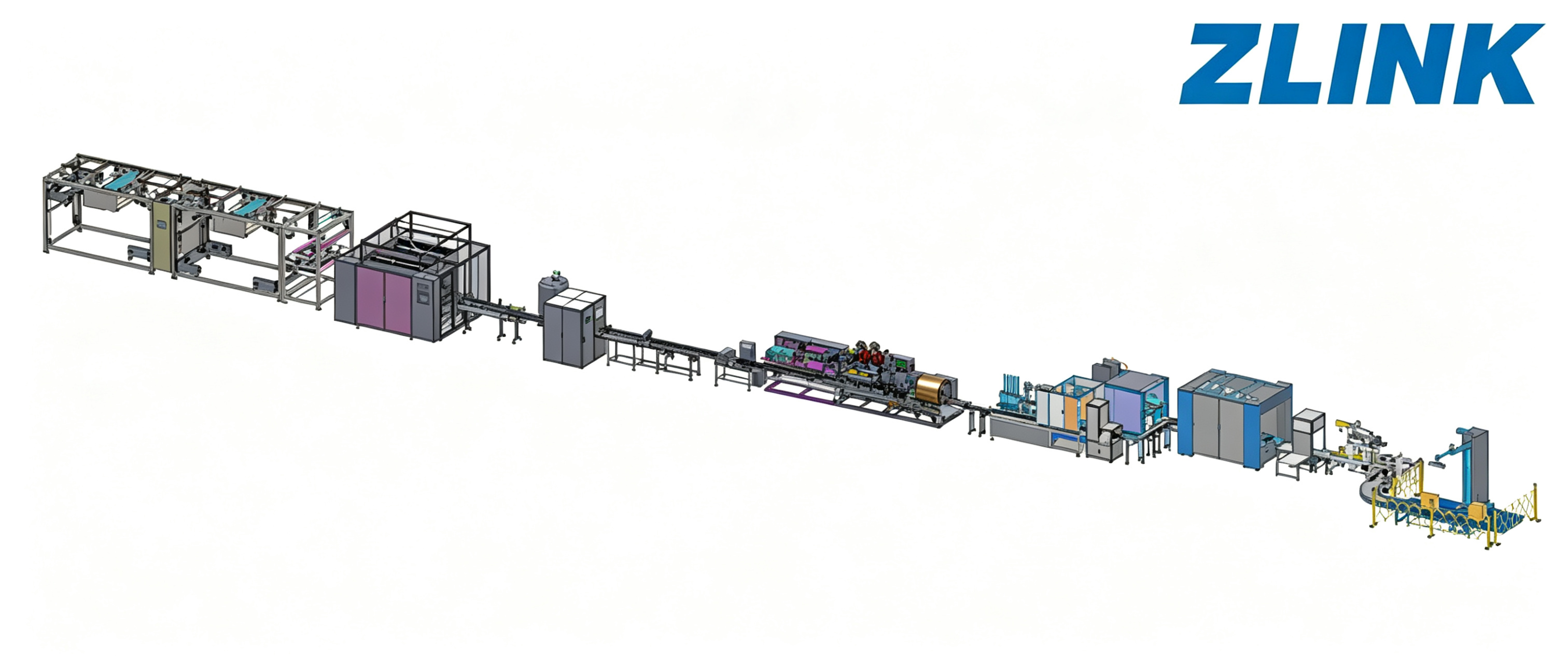

The ZLINK WT-MD200 is a high-speed horizontal folding wet wipes production line engineered specifically for pop-up , так и для flushable wipes. This оборудование для производства влажных салфеток achieves stable output at 100–120m/min with precise cut-length control and pop-up folding capability. Designed for manufacturers who need uninterrupted production, this машина для изготовления влажных салфеток features vision-guided auto-grip unwinding, independent servo tension control, and non-stop auto splicing — reducing downtime and manual intervention during roll changes. Supporting 1400–1600mm nonwoven roll width and 45–80gsm material, this line is ideal for both flushable wood pulp , так и для spunlace wet wipes production.

【Основные моменты】

• Horizontal Folding Design: Ensures consistent stacking quality even at high speed, ideal for pop-up wipes

• Pop-up & Flushable Compatibility: Optimized for both flushable wood pulp and spunlace nonwoven materials

• High-Speed Stable Output: Runs at 100–120m/min with design speed up to 150m/min, maximizing daily production

• Автоматическая смена рулонов без остановки: Vision-guided unwinding with automatic splicing minimizes downtime during roll changes

• Precise Cut Length Control: Adjustable cutting length from 130–200mm with servo-controlled accuracy

• SCADA-Ready Control System: ZLINK independently developed system with HMI interface for reliable operation

【Технические данные】

Interfolder machine technical data
Configuration	Содержание
Система управления	ZLINK independently developed system
Применяемый нетканый материал	1. Flushable wood pulp nonwoven fabric; 2. Spunlace nonwoven fabric
Nonwoven gram weight	45~80gsm
Nonwoven roll width	W1400mm~1600mm
Nonwoven roll diameter	Max: 1200mm
Folded width	Spunlace nonwoven fabric: Folded width W100mm (Open size fixed at 200mm)
	Flushable material: Folded width W100mm (Open size adjustable: 178~204mm)
Тип складывания	Pop up
Cutting length	L130~200mm
Quantity per package	40~100 sheets per pack (30 ≤ Stacking height ≤ 110mm)
Design speed 150m/min (different material speed)	45-80gsm spunlace nonwoven running speed 100-120m/min (speed depends on material)
	45-80gsm flushable material running speed 100-120m/min (speed depends on material)
Logsaw cutting speed	100~150 cuts/min
Dosing ratio	1.5~3.5 times (dosing  ≤ 2.67 hours) each lane individual servo magnetic pump
Unwinder	Visual positioning automatically pick up and lift up, independent motor controls unwinding to ensure stable tension, non-stop auto splicing, equiped with automatic edge position controller
Note: Packing sizes are same as the standard flow wrapping machine

• What is the difference between horizontal folding and other folding types?
  Horizontal folding produces wipes that are stacked horizontally, which is ideal for pop-up dispensing where each wipe pulls up the next. This design ensures consistent stacking quality even at high speeds.

• What materials can this horizontal folding wet wipes line process?
  It processes flushable wood pulp nonwoven (45–80gsm) and spunlace nonwoven (45–80gsm), with roll width up to 1600mm.

• What is the production speed of this pop up wipes production line?
  The WT-MD200 runs at 100–120m/min depending on material, with a design speed of 150m/min.

• What is the price of this horizontal folding wet wipes production line?
  Pricing depends on configuration and additional features. Contact ZLINK with your production requirements for a customized quote.
