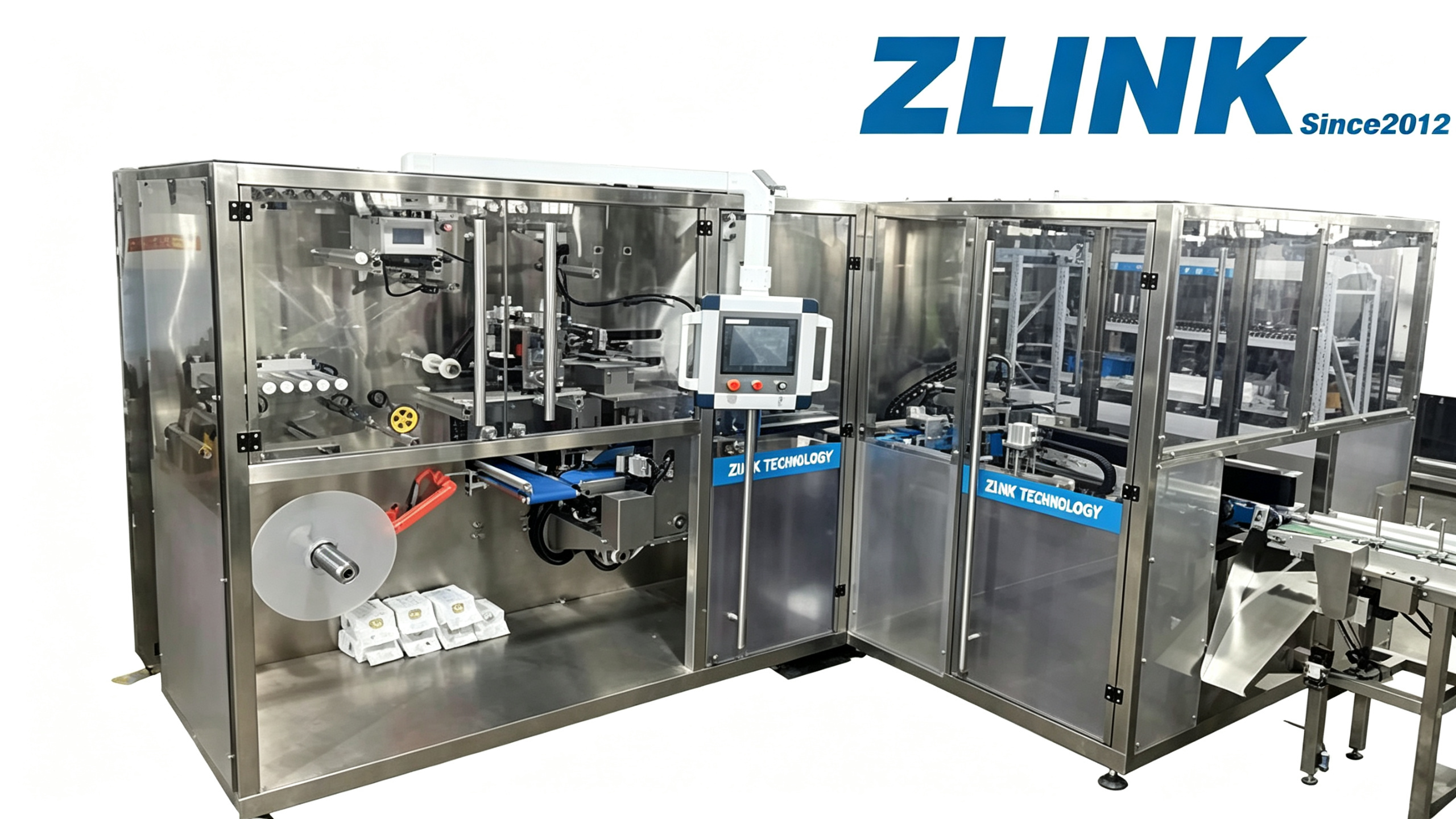

The ZLINK WE-MP80 is a fully servo-driven wet wipes multi-pack machine designed for high-speed secondary packaging of wet wipes. Powered by a Mitsubishi Q-series motion PLC with all-axis servo control, this wet wipes packaging machine delivers up to 35 multipacks per minute with precision and reliability. Featuring robotic bag opening, intelligent stacking, and a turret self-inspection system that rejects unbagged products, the WE-MP80 is the ideal wet wipes packaging solution for manufacturers looking to automate their multi-pack operations efficiently.
【Highlight】
Fully Servo-Driven: Mitsubishi Q-series motion PLC with all-axis servo control for precision and reliability
Robotic Bag Opening: Automatically opens bags and detects unopened ones for rejection
Intelligent Stacking: Auto-rejects excess products to ensure stable operation
Turret Self-Inspection: Rejects unbagged products to maintain quality standards
Compact Footprint: 5.3m × 6.3m, fits into existing production layouts
SCADA-Ready: Optional SCADA integration for equipment monitoring and data output
【Machine Features and Highlights】
Electrical system | Electrical safety circuit design and comply with CE safety standard |
Control system | Using Mitsubishi Q series motion control type PLC controlling, and mechanical motion control axes are all servo-controlled |
HMI | Mitsubishi 8＂ color LCD touch screen: resolution 640*480, communication mode Ethernet |
Wet wipestwisting module | Wet wipes package direction can be set |
Stacking module | Auto reject excess products and ensure machine stable operation |
Feeding robot arm | Wet wipes package quantity settable |
Bag turning opener device | Auto reject empty bags to prevent the empty bag or no bag sealing |
Auto bag opening | Bag is automatically opened by the robot arm and automatically detects that the bag is not open and rejects not opened bags |
Trimming collection | Trimming is automatically collected to the waste bin on-line without machine stop |
Self-adapting debug | Self-adapting debug system nonstop machine resolve some of faults automatically |
Code printer (Optional) | On-line date code print |
SCADA application program (Optional) | (Supervisory Control and Data Acquisition) equipment operating and detection data output port |
【Technical Data】
Applied packing film | Preformed bag in roll, PET/PE, PE, PET/AL/PE laminated film and other heat-seal materials |
Preformed bag specifications | L320-400mm, W150-200mm, H110mm (not include hanging part) |
Packing specifications | 90 single bags/min or 30 multipack/min, whichever comes first |
Designed speed | 35 multipacks/min |
External dimension | L5300mm, W6300mm, H2400mm |
Rated power | AC380V (Customizable), 50/60Hz, three-phase five-wire, 15KW |
Compressed air | 0.6-0.8Mpa, 200L/min |
Net weight | About 3500KGS |
What is the output speed of this multi-pack machine?
The WE-MP80 delivers up to 35 multipacks per minute, with priority given to either 90 single bags/min or 30 multipacks/min, whichever comes first.
What film types does this secondary packaging machine support?
It supports pre-made bag films including PET/PE, PE, and PET/AL/PE laminated films, with bag specifications of L320-400mm × W150-200mm × H110mm.
What is the footprint of this wet wipes multi-pack machine?
The machine measures 5.3m × 6.3m × 2.4m and weighs approximately 3,500kg.
What is the price of this wet wipes packaging solution?
Pricing depends on configuration and optional features like inkjet coding and SCADA integration. Contact ZLINK for a customized quote.
