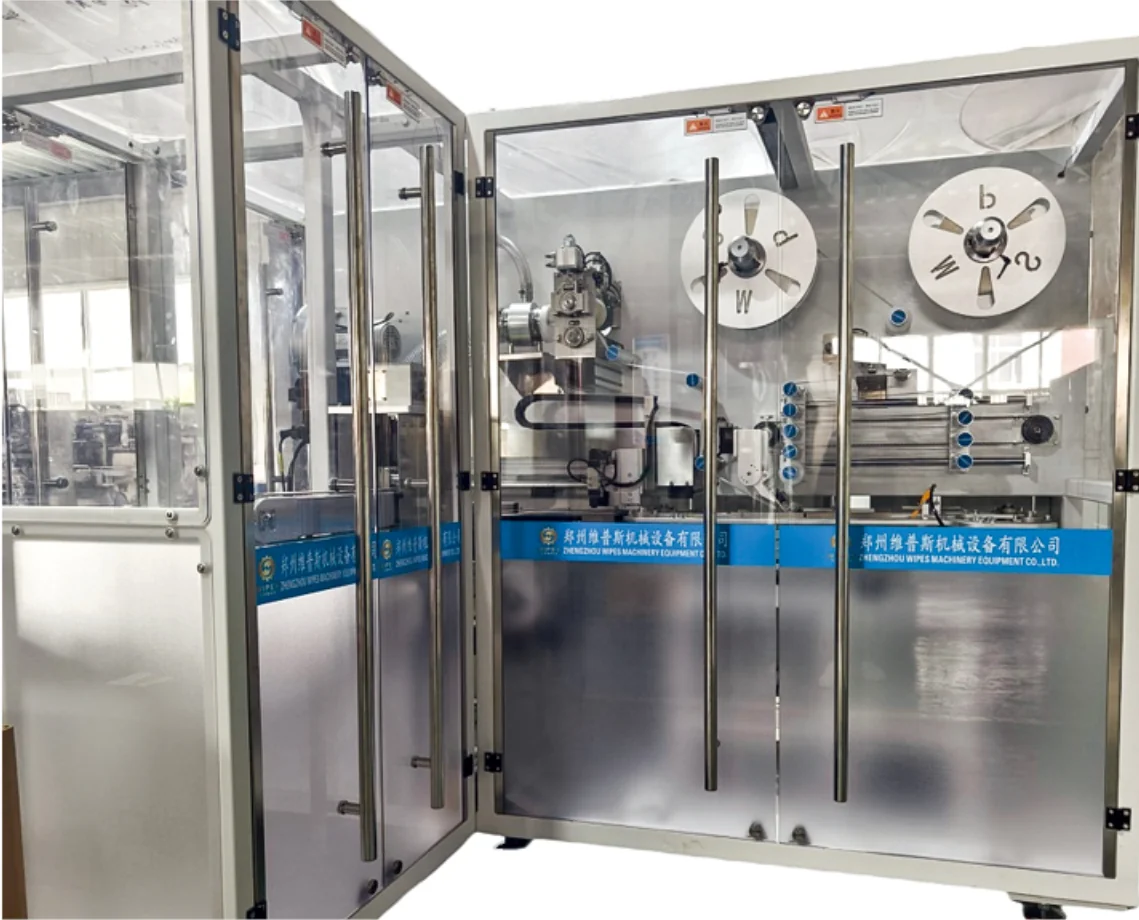

The ZLINK WE-BM60 is a high-performance wet wipes labeling and bundling machine designed for efficient secondary packaging of wet wipes multi-packs. This wet wipes packaging machine integrates precise labeling and secure bundling in one automated system, significantly reducing manual handling and increasing throughput. Ideal for manufacturers looking to streamline their post-production packaging line, the WE-BM60 delivers consistent results with minimal operator intervention.
【Why Us】
Labeling & Bundling Integration: Combines two critical packaging steps into one machine, saving floor space and labor
High-Speed Operation: Engineered for continuous, high-throughput production to match your wet wipes line speed
Precision Labeling: Ensures accurate label placement on every multi-pack for a professional finish
Secure Bundling: Provides reliable bundling to keep multi-packs intact during storage and transport
User-Friendly Controls: Intuitive HMI for easy setup, operation, and changeover between different pack sizes
Durable Construction: Built with high-quality materials for long-term reliability in demanding production environments
【Machine Features and Highlights】
Electrical system | Electrical safety circuit design, and comply with CE safety standards |
Control system | Using Huichuan AC702 motion control type PLC, mechanical motion control axes are all servo-controlled |
HMI | Huichuan 10-inch color LCD touch screen: resolution 1024*600, communication mode Ethernet |
Wet wipes twisting module | Wet wipes package direction can be set |
Conveyor module | Auto reject empty bags to ensure stable operation of machine |
Feeding module | Wet wipes package quantity settable |
Trimming collection | Trimming is automatically collected to the waste bin on-line without machine stop |
Self-adapting debug | Self-adapting debug system nonstop machine resolve some of faults automatically |
SCADA application (Optional) | (Supervisory Control and Data acquisition) Equipment operation and detection data output port |
HBM60 Bunding Machine
【Technical Data】
Applicable raw material | PP synthetic paper |
Label specification | L220-800mm, W40-80mm |
Packing specification | Bunding product thickness: 40mm-100mm |
Production speed | In the case of 2 packages, feeding 120 pkg/min, 60 bundle/min |
External dimension | L3830mm, W2325mm, H1844mm |
Rated power | AC380V (adjustable voltage), 50/60Hz, three-phase five-wire system, 10KW |
Compressed air | 0.6-0.8Mpa, 200L/min |
Net weight | About 2500 KGS |
HBM60 Labeling Machine
【Technical Data】
Applicable raw material | CPP |
Label specification | L50-350mm, W40-80mm |
Packing specification | Labeling product thickness: 40mm-100mm |
Production speed | In the case of 2packages, feeding120 pkg/min, 60 bundle/min |
External dimension | 3000mm, W1320mm, H1808mm |
Rated power | AC380V (adjustable voltage), 50/60Hz, three-phase five-wire system, 10KW |
Compressed air | 0.6-0.8Mpa, 200L/min |
Net weight | About 2500 KGS |
What is the difference between a labeling machine and a bundling machine?
A labeling machine applies labels to individual products or multi-packs, while a bundling machine groups and secures multiple packs together (e.g., with shrink film or paper wrap). The WE-BM60 combines both functions.
What is the output speed of this wet wipes labeling and bundling machine?
The WE-BM60 is designed for high-speed operation. Please contact us with your production requirements for specific speed metrics.
Can this machine handle different multi-pack sizes?
Yes, the WE-BM60 features adjustable settings for quick changeover between different pack sizes and configurations.
What is the price of this wet wipes packaging machine?
Pricing depends on configuration and additional features. Contact ZLINK for a customized quote based on your production needs.
