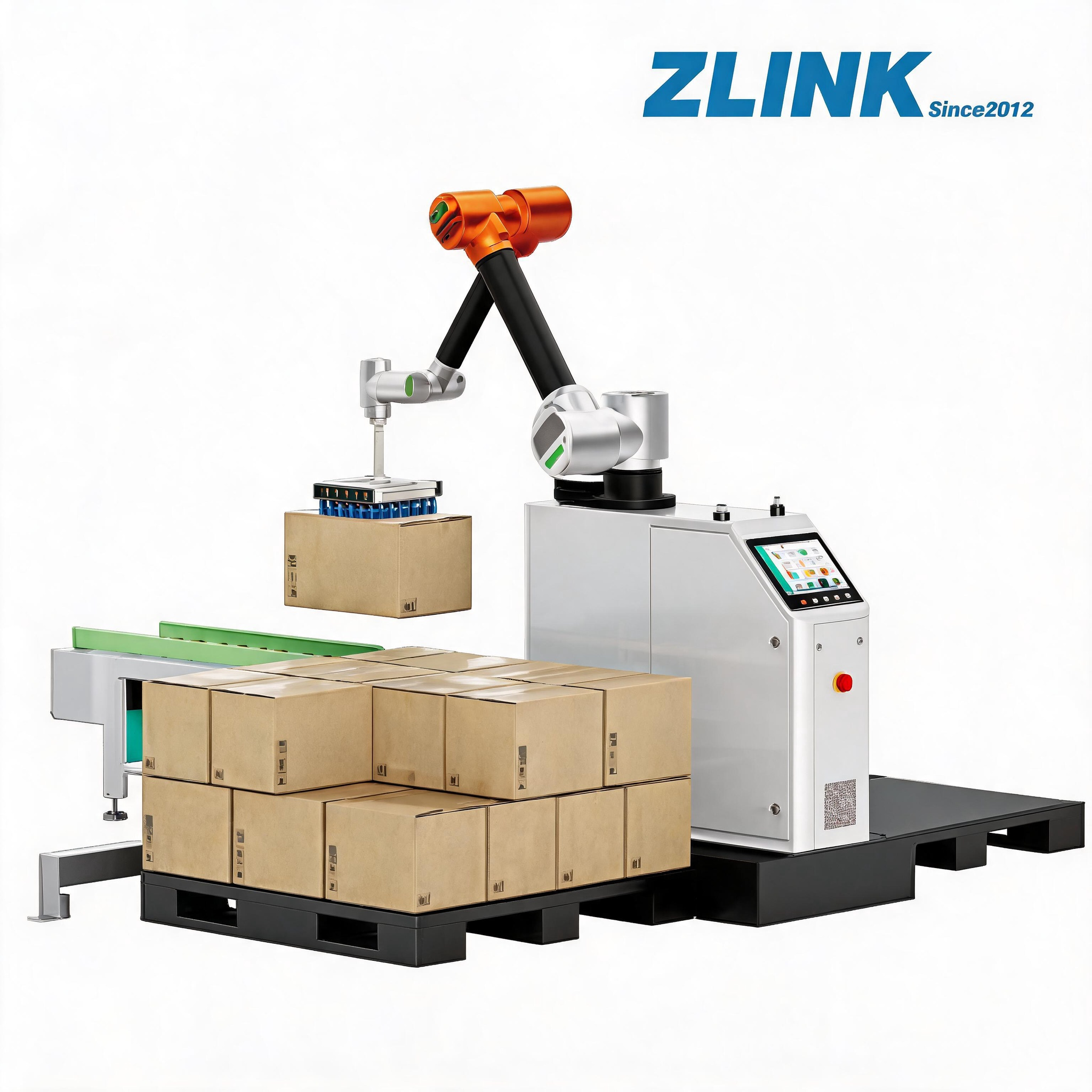

Cobot Palletizing Workstation for Wet Wipes – ZL Series

The ZLINK ZL Series is a cobot palletizing workstation engineered for manufacturers who need flexible, safe, and easy-to-deploy end-of-line palletizing solutions. Unlike traditional industrial robots that require safety fencing and dedicated floor space, this collaborative robot palletizer is designed to work alongside human operators safely, with built-in force limiting and speed monitoring. The ZL Series cobot palletizing system can be quickly deployed in existing production lines without extensive re-engineering, making it ideal for wet wipes, FMCG, and other industries with frequent product changeovers or space constraints.

【Highlight】

• Collaborative & Safe: Built-in force limiting and speed monitoring enable safe human-robot collaboration without safety fencing

• Quick Deployment: Easy to integrate into existing production lines with minimal re-engineering

• Flexible Operation: Ideal for facilities with frequent product changeovers or limited floor space

• High Payload Capacity: Handles a wide range of case sizes and weights typical in wet wipes and FMCG packaging

• User-Friendly Programming: Intuitive interface allows operators to quickly adjust palletizing patterns

• Compact Footprint: Space-saving design fits into crowded production environments

【Technical Data】

Model	ZL-PZ25		ZL-PZ30	ZL-PZ40
Robot arm load	25KG		30KG	40KG
working radius	1900mm
horizontal distance (Card board specifications)
Palletizing height	Maximum: 2600mm		Maximum: 2600mm	Maximum: 2100mm
Palletizing speed	<9pcs/min	<12pcs/min	<9pcs/min	<7pcs/min
Repetitive positioning accuracy	±0.04mm		±0.04mm	±0.04mm
Communication mode	TCP/IP		TCP/IP	TCP/IP
IP rating	IP54
Working temperature	0-55°C
Rated power	2.8kw		3.5kw	3.5kw
Power supply	Single-phase220v/50HZ		Single-phase220v/50HZ	Single-phase220v/50HZ
Weight	≈ 350kg		≈ 350kg	≈ 500kg
Floor area	1505*1716mm
Working area	3150*1716mm		3550*1716mm	3150*1716mm
Minimum roof height	3.2m		3.2m	3.3m

• What is a cobot palletizing workstation?
  A cobot (collaborative robot) palletizing workstation is a robotic palletizing system designed to work safely alongside human operators. Unlike traditional industrial robots that require safety cages, cobots have built-in safety features like force limiting and speed monitoring.

• How is this different from a traditional robotic palletizer?
  The ZL Series collaborative robot palletizer requires no safety fencing, has a smaller footprint, and can be deployed more quickly. It is ideal for facilities with space constraints or frequent product changeovers, while traditional palletizers like the RPM series are better suited for high-volume, fixed-pattern operations.

• What is the payload capacity of this cobot palletizing system?
  The ZL Series is designed to handle typical case weights in wet wipes and FMCG production. Please contact us with your specific requirements for detailed specifications.

• Is this cobot palletizer suitable for my production line?
  The ZL Series is highly flexible and can be deployed in most existing production lines with minimal re-engineering. Contact ZLINK for a site assessment and customized solution.
