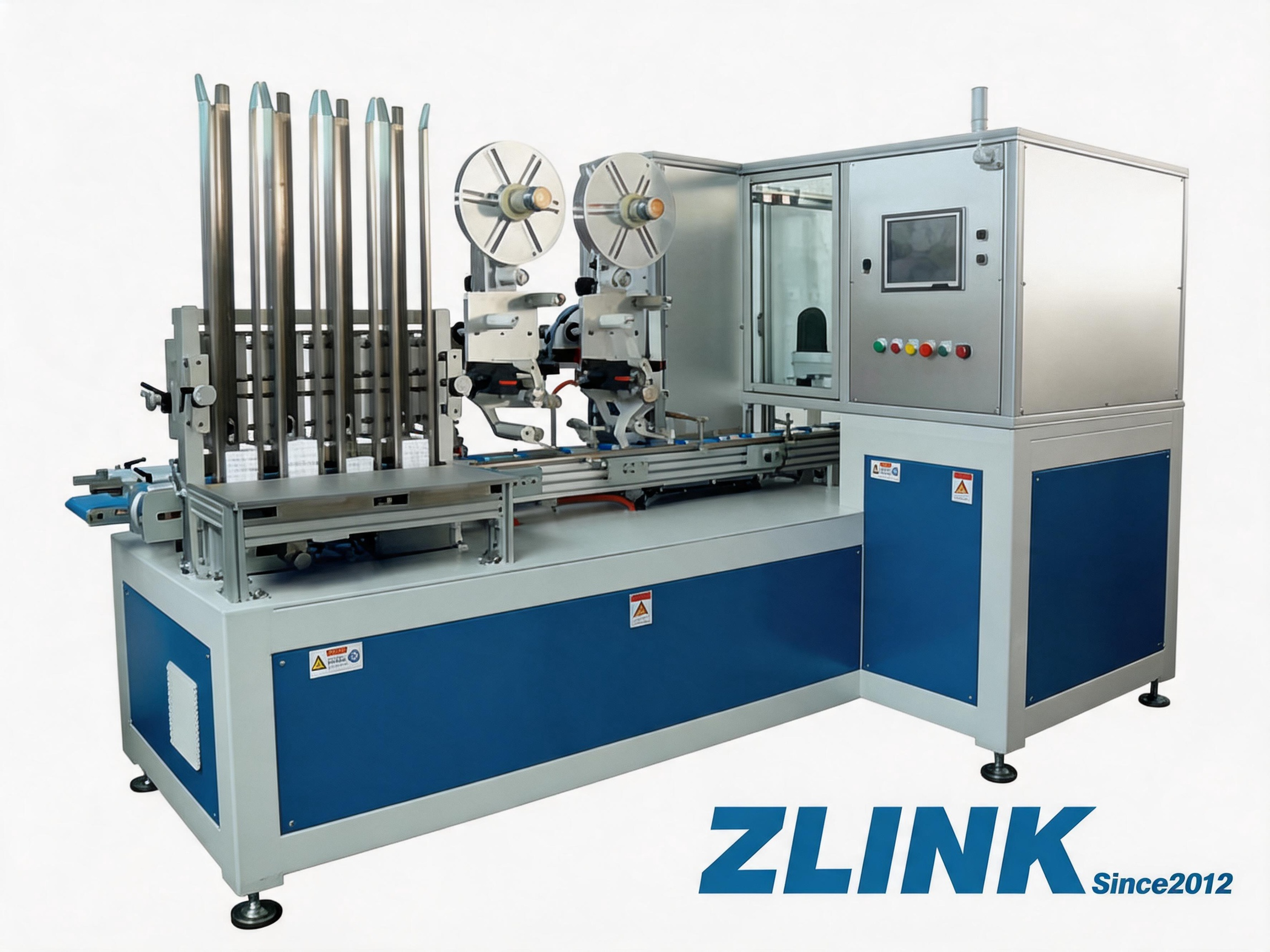

The ZLINK RLA-090/110 is a high speed lid applicator engineered specifically for wet wipes packaging lines. This advanced wet wipes capping machine integrates a STAUBLI TP80 industrial robot with a BECKHOFF real-time control system and machine vision technology. The vision system detects label position and angle on wet wipe packs in real time, guiding the robot through cap pickup, glue application, and precise placement—with glue trajectory flexibly adapting to cap geometry. Whether you need standard or irregular-shaped caps, this robotic lid applicator delivers exceptional speed and accuracy while eliminating manual labor.
【Highlight】
Robot-Powered Precision: STAUBLI TP80 high-speed robot with dual-suction-cup option (RLA-110) for maximum throughput
Vision-Guided Application: Machine vision system detects label position and angle in real time for precise cap placement
Flexible Glue Trajectory: Adapts to cap geometry for consistent, reliable bonding
High-Speed Output: RLA-090 delivers 80 packs/min (standard caps) / 60-70 packs/min (irregular); RLA-110 reaches 120 packs/min / 90-100 packs/min respectively
Dual Automatic Labelers: Two automatic-switching labelers ensure non-stop operation
Wide Compatibility: Handles cap sizes L50-130×W50-90mm and wipe heights H20-110mm
【Technical Data】
Device Model | RLA-090 | RLA-110 |
Robot Model | STAUB Ll-TP80 one suction cup | STAUB Ll-TP80, two suction cups |
Capping accuracy | ±0.5mm | ±1mm |
Labeling accuracy | ±0.5mm | ±1mm |
Wet wipes height | H20~110mm | H20~110mm |
Cap size | L50~130mm W50~90mm H4~10mm | L50~130mm W50~90mm H4~10mm |
Label size | L30 ~100mm W30~80mm | L30~100mm W30~80mm |
Number of labeling machines | 2 (Automatic switching) | 2 (Automatic switching) |
Capping speed | Regular lids (80 packing/min) Special-shaped lids (60-70 packing/min) | Regular lids (120 packing /min) Special-shaped lids (90-100packing /min) |
Equipment size | L3340mm W1500mm H2000mm | L4220mm W1500mm H2000mm |
Power supply | AC380V 50/60HZ three-phase five-wire capacity 3kVA | AC380V 50/60HZ three-phase five-wire capacity 5KVA |
Air source | 0.6~0.8MPa 70L/min | 0.6~0.8MPa 70L/min |
Equipment weight | 2000Kg | 2200Kg |
What is a lid applicator in wet wipes production?
A lid applicator is a machine that automatically applies plastic or paper lids to wet wipes packaging (such as canisters or boxes). The RLA series uses robotic arms and vision guidance for precise, high-speed application.
What is the difference between RLA-090 and RLA-110?
The RLA-090 features a STAUBLI TP80 robot with one suction cup, while the RLA-110 upgrades to dual suction cups for higher throughput. The RLA-110 also offers higher capping speeds: 120 packs/min for standard lids vs. 80 packs/min on the RLA-090.
What is the capping accuracy of this wet wipes capping machine?
The RLA-090 achieves ±0.5mm accuracy, while the RLA-110 achieves ±1mm accuracy.
What is the price of this high speed lid applicator?
Pricing depends on the model (RLA-090 vs. RLA-110) and configuration. Contact ZLINK for a customized quote based on your production needs.
