As a high – speed baby wipes production line, it combines an electrical safety design in line with the CE standard, advanced control systems like multi – axis servo motion control, and features for hygiene and quality control. It can produce baby wipes at a high speed, ensuring product quality.

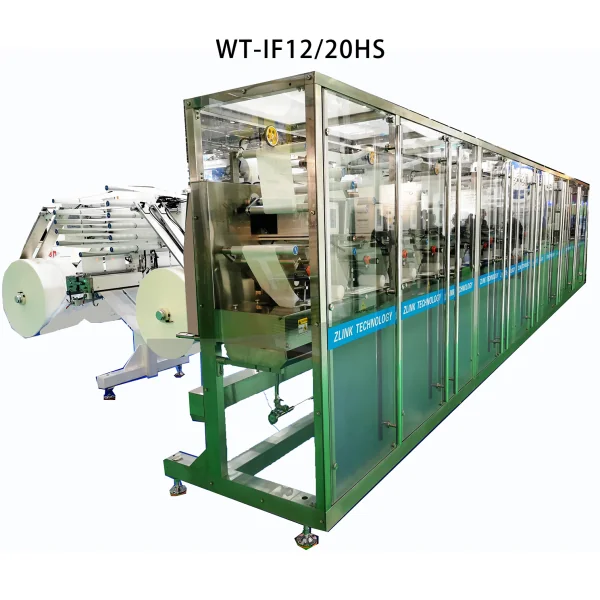

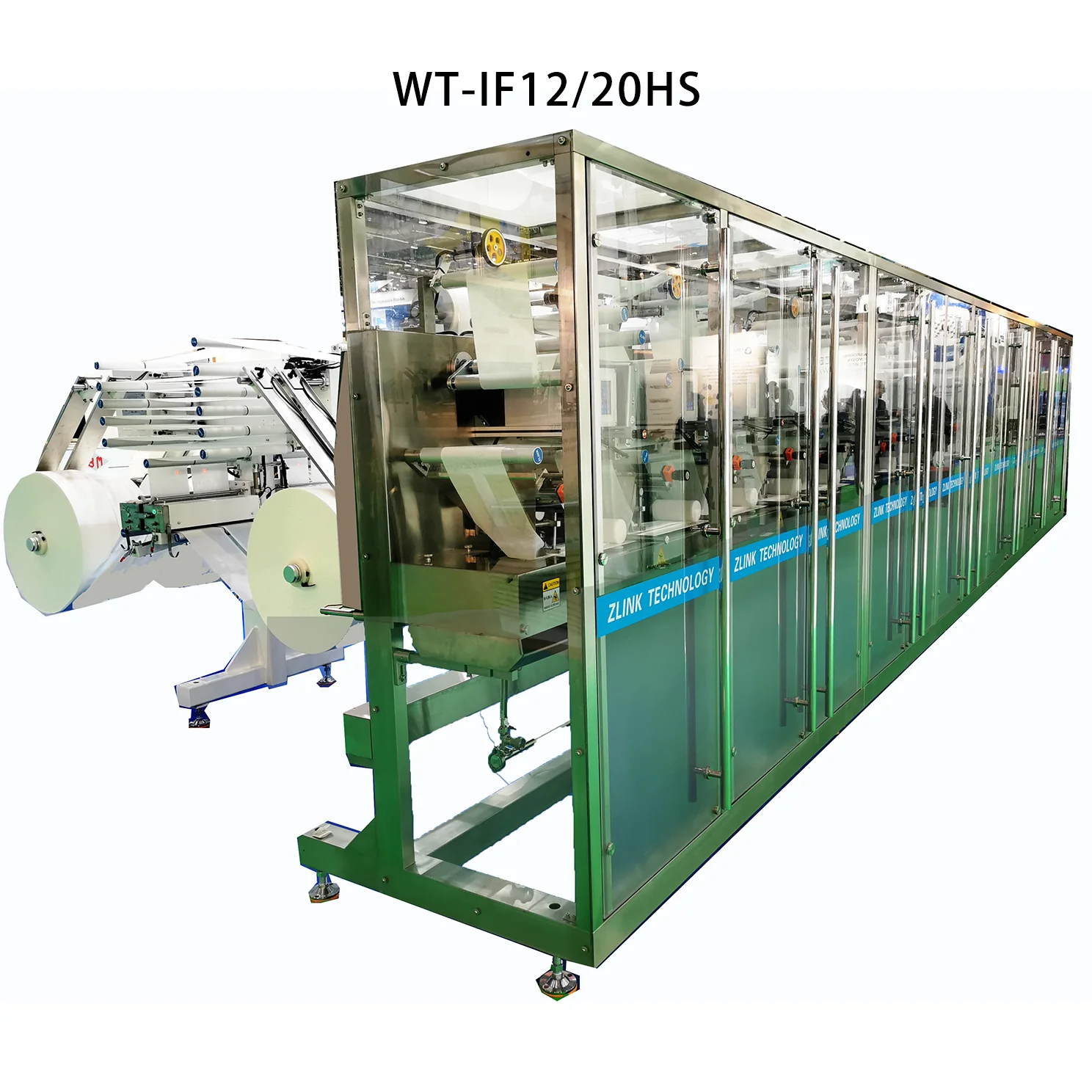

| WT-IF12/20HS HIGH SPEED BABY WIPES PRODUCTION LINE | ||
| 【Machine Features and Highlights 】 | ||
| Machine model | WT-IF12HS | WT-IF20HS |
| Electric system | Electrical safety circuit design and comply with CE safety standard | |
| Control system | Multi-axis servo motion controller, full servo motor control | |
| HMI | LCD Color touch screen display interface | |
| Unwinding device | Independent automatic tension control system | |
| Auto splicing | Nonwovens, packing film and labeller non-stop auto splicing with spliced joint automatic rejection system | |
| Wipes cutting module | Rotary cutting roller | |
| Cleaning and disinfection | Hygiene grade design, wipes conveyor belt is designed for easy disassembly and it is easy to clean and disinfect | |
| Wetting flow control | Electronic flowmeter control wetting flow, reduce recycle liquid, wetting range 2.5-4.5 times | |
| Pipeline disinfection | Pipeline and pump use hygiene grade low point drain out design and 3D design standard, no residue and free of dead corner, apply to pasteurization or CIP (Clean In Place) | |
| Spectral decomposition detection | Nonwoven, label, packing film, wetting weight, packaging on-line monitoring | |
| Automatic web guider (Optional) | Automatic web guider to ensure high speed stable running and folding accuracy | |
| Quality control (Optional) | Nonwoven stain detection, Metal detection, Checkweigher, Date code & Die cutting & Labelling visual inspection | |
| SCADA application program (Optional) | (Supervisory Control And Data Acquisition) equipment operating and detection data output port | |
| 【Technical Data】 | ||
| Machine model | WT-IF12HS | WT-IF20HS |
| Applied nonwoven material | Spunlace or flushable material and degradable material | |
| Nonwoven specification | Each lane roll W160-330mm, Φ1200mm, coreφ76.2mm(3”) | |
| Lanes distribute and folding | 24 lanes of nonwoven, 12 lanes running, 12 lanes standby for splicing | 40 lanes of nonwoven, 20 lanes running, 20 lanes standby for splicing |
| Applied packing film | PET/PE, BOPP/PE, PET/AL/PE laminated film and other heat-seal materials | |
| Packing film specification | Maximum W420mm, Φ360mm, coreφ76.2mm(3”) | |
| Packing film quantity | 2 rolls of packing film, non-stop auto splicing | |
| Applied sticker | Transparent sticker or non-transparent sticker | |
| Sticker specification | Maximum W100mm, Φ400mm, coreφ76.2mm(3”), 2 rolls of sticker, non-stop switch | |
| Fold type | Not pop up extraction or Pop up extraction(Optional: special folding device for flushable material) | |
| Folded size | L130-250mm, W80-120mm (otherwise indicated) | L140-300mm, W80-120mm (otherwise indicated) |
| Unfolded size | L130-250mm, W160-240mm (otherwise indicated) | L140-300mm, W160-240mm (otherwise indicated) |
| Package size | L150-300mm, W85-125mm, H30-110mm (otherwise indicated) | |
| Production speed | 120 ppm or MAX 750 cpm or 9000 wipes/min, whichever comes first | 120 ppm or MAX 750 cpm or 15000 wipes/min, whichever comes first |
| External dimension | L24200mm, W4500mm, H2350mm | L29200mm, W4500mm, H2350mm |
| Rated power | AC380V (Customizable), 50/60Hz, three-phase five-wire, 30KW | AC380V (Customizable), 50/60Hz, three-phase five-wire, 32KW |
| Compressed air | 0.6-0.8Mpa, 155L/min | 0.6-0.8Mpa, 165L/min |
| Net weight | About 18000KGS | About 20000KGS |
