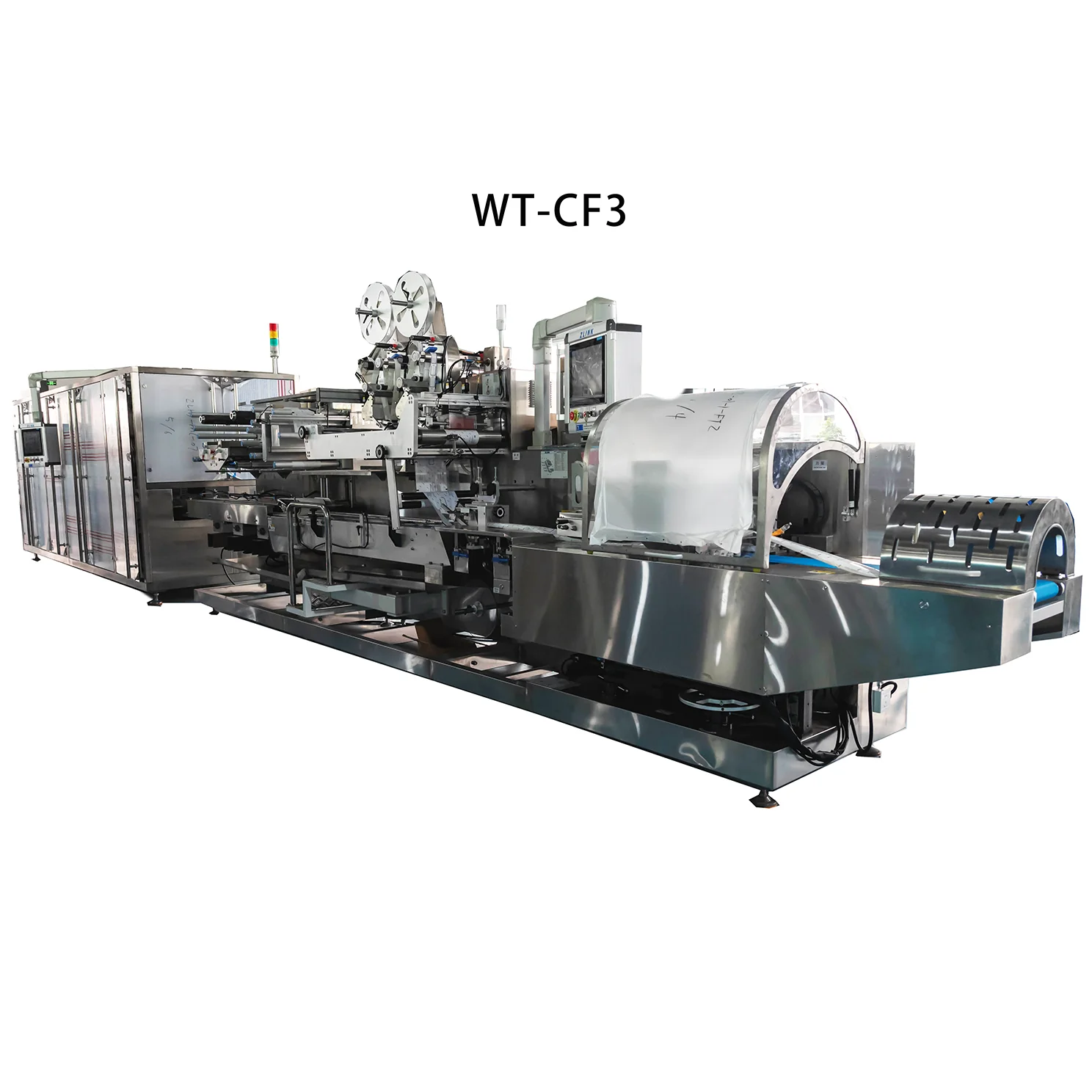

The WT-CF3 wet wipes production line meets CE safety standards and delivers high-efficiency, fully automated production. Featuring a multi-axis servo motion controller with a user-friendly LCD touch screen, it ensures precise operation, continuous output, and long-term reliability for a wide range of wet tissue materials.
Key Features:
Production Process of WT-CF3 Wet Wipes Production Line
Experience the peak of automation with our CE-compliant WT-CF3 wet wipes production line. From precision wetting to film punching and labeling, every stage is designed for hygiene, accuracy, and high efficiency, providing a professional wet wipe production line supply for global wet wipes manufacturers.
WT-CF3 Production Process:
1.Nonwoven Fabric Feeding – Unwinding material onto the feeding rack.
2.Folding via Traction System – Smooth fabric passes through dedicated folding plates.
3.Liquid Wetting / Impregnation – Applying wet wipe solution evenly.
4.Cutting & Stacking – Slicing and stacking the wipes efficiently.
5.Optional Quality Inspection – Metal detection, weight checking, and removal of defective wipes.
6.Visual Monitoring & Film Opening – Ensuring accurate packaging film positioning.
7.Film Printing / Coding – Adding batch codes or labels on the packaging film.
8.Final Wet Wipe Encapsulation – Complete packaging of ready-to-ship wipes.
 |  |  |
 |  |  |
 |  |
Versatile Applications of WT-CF3 Wet Wipes Production Line
ZLINK’s WT-CF3 wet wipes production line is engineered for the diverse demands of the global hygiene market, delivering premium quality across multiple categories:
As a trusted wet wipe production line supplier, ZLINK provides the flexibility and stability to produce market-ready wipes efficiently.
| WT-CF3 HIGH SPEED CROSS FOLD WIPES PRODUCTION LINE | |
| 【Machine Features and Highlights 】 | |
| Electric system | Electrical safety circuit design and comply with CE safety standard |
| Control system | Multi-axis servo motion controller, full servo control |
| HMI | LCD Color touch screen display interface |
| Unwinding device | Independent automatic tension control system |
| Auto splicing | Nonwovens, packing film and labeler non-stop auto splicing with spliced joint automatic rejection system |
| Automatic edge position controller | Automatic edge position controller for jumbo roll and four lanes after slitting, to ensure high speed stable running and folding accuracy |
| Wipes cutting module | Use screw type flexible cutting blade, without mechanical vibration and shock, increase of service life for cutting blade |
| Cleaning and disinfection | Hygiene grade design, wipes conveyor belt is designed for easy disassembly and it is easy to clean and disinfect |
| Wetting flow control | Electronic flowmeter control wetting flow,reduce recycle liquid, wetting range 2.5-4.5 times |
| Pipeline disinfection | Pipeline and pump use hygiene grade low point drain out design and 3D design standard, no residue and free of dead corner, apply to pasteurization or CIP (Clean In Place) |
| Spectral decomposition detection | Nonwoven, label, packing film, wetting weight, packaging on-line monitoring |
| Spectral decomposition detection | Nonwoven, label, packing film, wetting weight, packaging on-line monitoring |
| Quality control (Optional) | Nonwoven stain detection, Metal detection, Checkweigher, Date code & Die cutting & Labelling visual inspection |
| SCADA application program (Optional) | (Supervisory Control And Data Acquisition) equipment operating and detection data output port |
| 【Technical Data】 | |
| Applied nonwoven material | Spunlace or flushable material and degradable material |
| Nonwoven specification | Maximum W800mm, Φ1200mm, coreφ76.2mm(3”), online slitting |
| Nonwoven quantity | Two-axis non-woven fabric, automatic splicing without stopping, three rolls in operation, three rolls on standby |
| Applied packing film | PET/PE, BOPP/PE, PET/AL/PE laminated film and other heat-seal materials |
| Packing film specification | Maximum W420mm, Φ360mm, coreφ76.2mm(3”) |
| Packing film quantity | 2 rolls of packing film, non-stop auto splicing |
| Applied sticker | Transparent sticker or non-transparent sticker |
| Sticker specification | Maximum W100mm,Φ400mm, coreφ76.2mm(3”), 2 rolls of sticker, non-stop switch |
| Fold type | Z fold (otherwise indicated) |
| Folded size | L90-100mm, W50-100mm |
| Unfolded size | L180-200mm, W140-200mm |
| Package size | L130-250mm, W50-100mm, H10-70mm |
| Production speed | 150 packages/min or 1800 wipes/min, whichever comes first |
| External dimension | L15000mm, W4500mm, H2350mm |
| Rated power | AC380V (Customizable), 50/60Hz, three-phase five-wire, 28KW |
| Compressed air | 0.6-0.8Mpa, 165L/min |
| Net weight | About 8500KGS |
How does the machine help us control production costs and material waste?
The WT‑CF3 wet wipes production line features non‑stop auto splicing for nonwoven rolls, packing film, and labels with automatic rejection of splice joints. This minimizes production stoppages and raw material waste, improving material efficiency and lowering overall production costs.
Can the production line provide data to support audits and traceability?
Yes. The WT‑CF3 can be equipped with an optional SCADA system, enabling export of equipment operation and detection data. This supports traceability and transparency required for internal quality audits and supply chain documentation.
What measures prevent defective products from reaching consumers?
The WT-CF3 wet wipes production line supports optional quality control modules including metal detection, check‑weighing, and visual inspection of die cutting, coding, and labeling. In addition, the system features online spectral monitoring (nonwoven, label, packing film, wetting weight, packaging), helping identify issues during production.
How does this production line meet hygiene requirements for sensitive wipe?
The WT‑CF3 is designed with hygiene‑grade piping and pumps that are free of dead corners and support Clean‑In‑Place (CIP) and pasteurization. The conveyor and components are easy to disassemble and clean, helping meet strict sanitary standards for high‑end wet wipe production.
How does the WT‑CF3 ensure consistent production quality?
The WT-CF3 wet wipes production line uses a multi‑axis servo motion controller and LCD touch screen interface for precise control of each stage. Combined with automatic tension control, edge positioning, and flow‑controlled wetting, this ensures every pack meets consistent specifications with minimal human error.
