Full-automatic case packer can realize high speed picking up and putting motion. It will complete a full-automatic production line and no need labor case packing. Autocomplete in line case unpacking, case filling, case sealing. Intelligent online removal function. Intelligent automatic divide and automatic counting system. On line case sealing detection function.

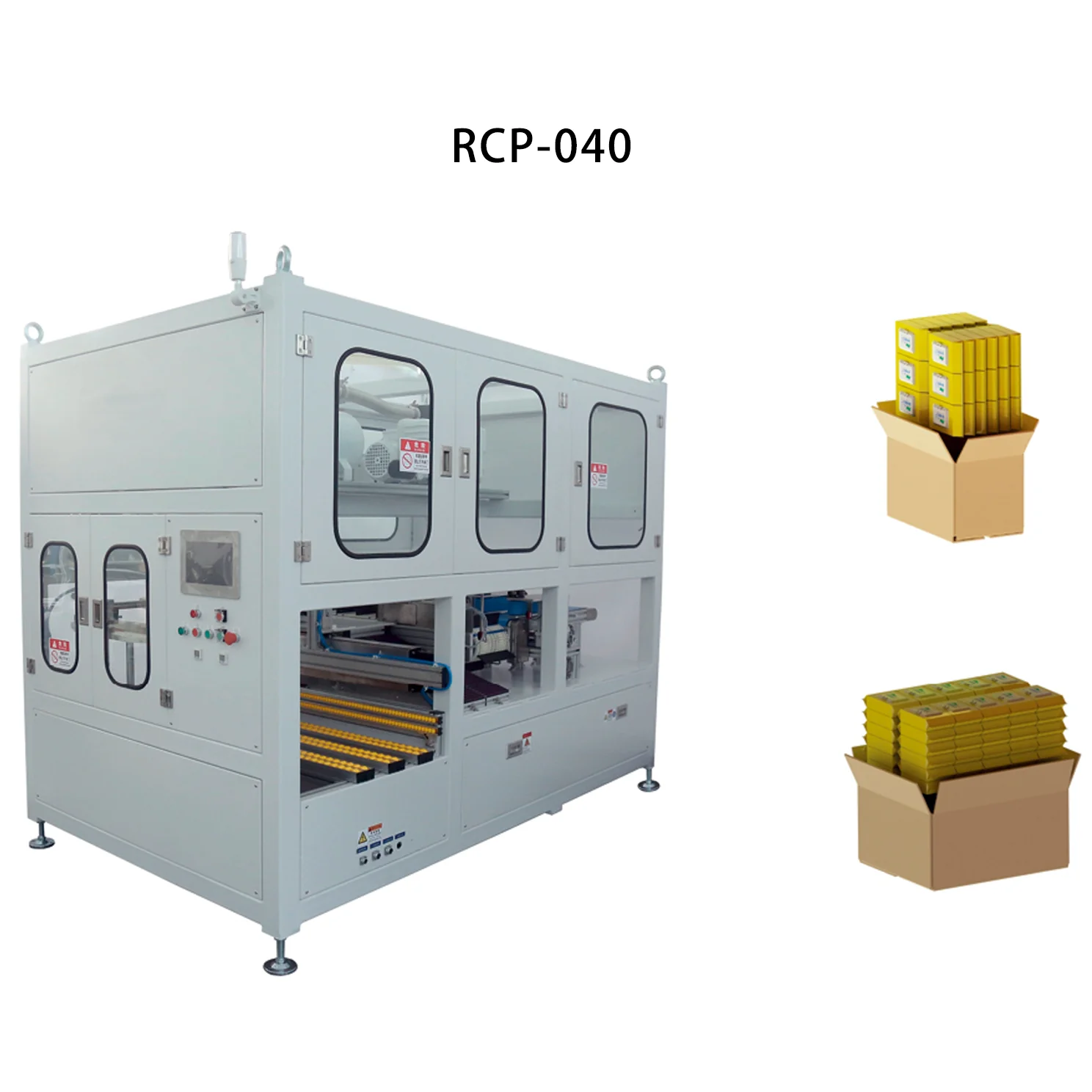

| RCP-040 AUTOMATIC CASE PACKER | |
| 【Machine Features and Highlights 】 | |
| Electrical system | Electrical safety circuit design and comply with CE safety standard |
| Control system | Multi-axis motion controller, full servo control |
| Packing method | Horizontal packing or twisting side-up packing, 2-12pkgs per layer, can be rotated 90 degrees |
| Change case size | HMI set up case sizes and automatic correction |
| Automatic detection | Auto reject filling fail or bad filling |
| Information management (Optional) | Equipment configured operation information output interface, can be connected to SCADA system |
| 【Technical Data】 | |
| Wet wipes conveyor | Connect the packaging machine or the capping machine |

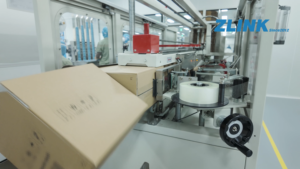

| Automatic case opener | High speed horizontal type case opener, maximum speed 30 cases/min, case size range: L240-450mm, W170-380mm, H230-360mm (speed related to the size) |
| Accumulation conveyor | Accumulate 3-5 empty cases after opened |
| Twisting conveyor | Can make wipes packaging twisting side-up or overturn, maximum speed 100pkgs/min |
| Collation conveyor | Synchronous collating in wet wipes package, horizontal or twisting side-up packing method, maximum speed 100pkgs/min |
| Pusher robot arm | Synchronous push out wipes for case packing, 25-40 times/min |

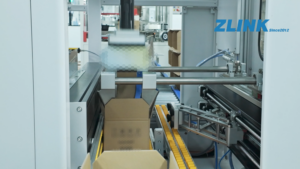

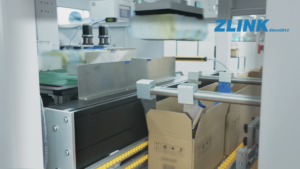

| Case packing robot | Three-axis robot, pick-up speed 25-40 times/min |
| Straight line auto case sealer | Flap folding and sealing, speed 1-20M/min |
| Case packing type | Horizontal or twisting side-up packing, Single row: 2-6pkgs, Double rows: 2x(2-6)pkgs |
| Dimensions | L3500mm, W2300mm, H2000mm |
| Rated power | AC380V, 50/60Hz, three-phase five-wire, 6KW |
| Compressed air | 0.6-0.8Mpa，100L/min |
| Weight | 1500KG |
| Other optional devices | H-shaped auto case sealer, defective case inspection, finished products checkweigher, auto reject defective case and short weight or overweight case |
Have questions about our wet wipes production equipment, services, or solutions? Reach out to our team—we’re ready to assist you promptly.
